Q1PBPCDM
ActiveHoffman Enclosures, Inc.

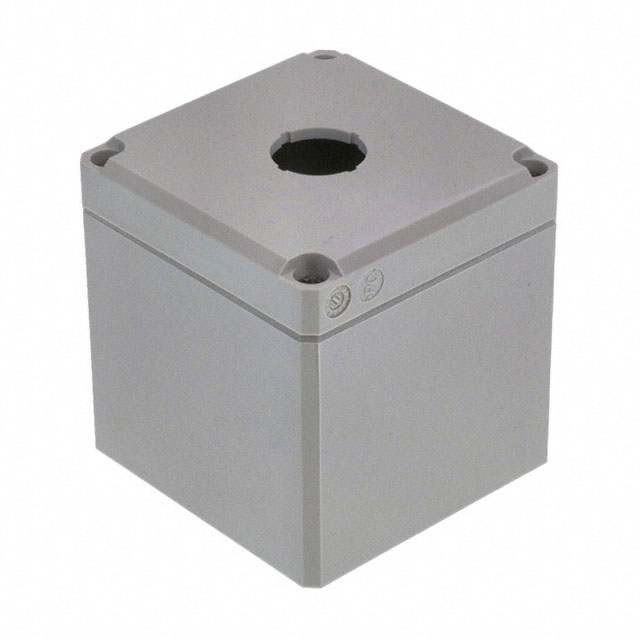

BOX PLASTIC GRAY 3.23"L X 3.15"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q1PBPCDM
ActiveHoffman Enclosures, Inc.
BOX PLASTIC GRAY 3.23"L X 3.15"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q1PBPCDM |
|---|---|
| Area (L x W) | 65 cm˛ |
| Area (L x W) | 10.1 in˛ |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Pushbutton Holes - 1 |
| Height [z] | 85 mm |
| Height [z] | 3.346 in |
| Material | Plastic, Polycarbonate |
| Ratings | UL-508A, IP67, 12, 4X, NEMA 4, 13 |
| Size / Dimension [x] | 3.228 in |
| Size / Dimension [x] | 82 mm |
| Size / Dimension [y] | 3.15 in |
| Size / Dimension [y] | 80 mm |
| Thickness | 3 mm |
| Thickness | 0.118 in |
| Weight | 113.4 g |
| Weight | 0.25 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.57 | |
| 5 | $ 71.41 | |||
| 10 | $ 66.74 | |||
| 25 | $ 63.79 | |||
Description
General part information
Q1PBPCDM
Box Plastic, Polycarbonate Gray Cover Included 3.228" L x 3.150" W (82.00mm x 80.00mm X 3.346" (85.00mm)
Documents
Technical documentation and resources
