Description
General part information

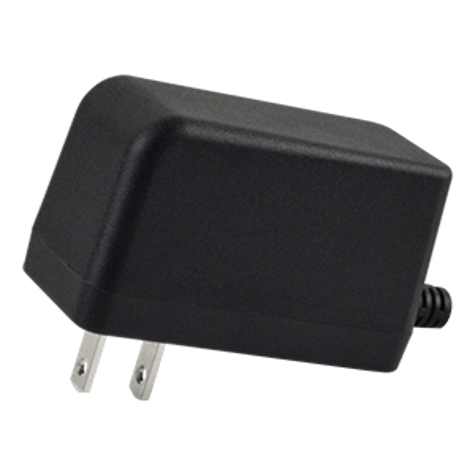

SWI12 Series
5.9V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SWI12-5.9-N-P6 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, FCC, PSE, CSA, CB Scheme, IEC |
| Cord Length | 59 in |
| Current - Output (Max) | 2 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption (Max) | 75 mW |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.5 mm |
| Output Connector Length | 9.5 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 12 W |
| Region Utilized | North America |
| Size / Dimension Height | 1.65 in |
| Size / Dimension Length | 2.83 in |
| Size / Dimension Width | 1.34 in |
| Standard Number | 62368-1, C22.2 No. 60950-1, 60950-1 |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 5.9 V |
| Weight | 0.278 lb |
