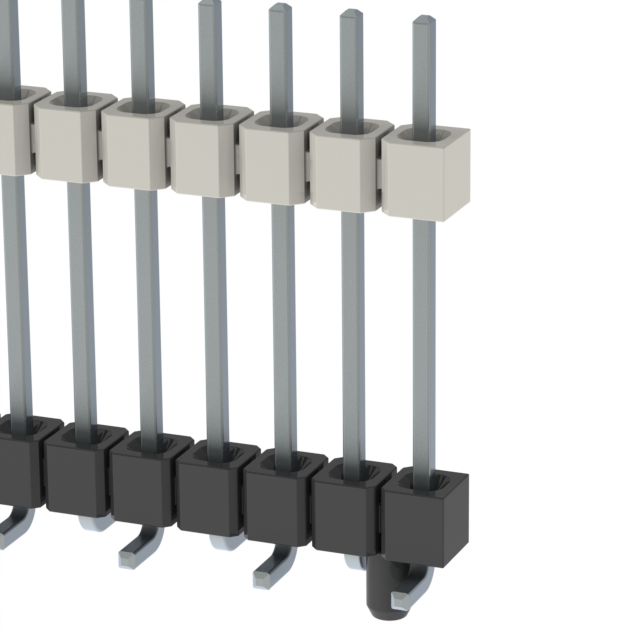

HW-20-10 Series

Part	Contact Finish Thickness - Post (Mating)	Number of Rows	Contact Finish - Post (Mating)	Number of Positions	Length - Post (Mating)	Length - Tail	Length - Stack Height	Row Spacing	Pitch	Termination	Length - Overall Pin	Color	Mounting Type
Samtec Inc. HW-12-10-FM-D-500-209	3 µin	2	Gold	24 pos	0.121 in	0.209 in	0.5 in	0.1 in	0.1 in	Solder	0.83 in	Black	Through Hole
Samtec Inc. HW-12-10-F-D-550-SM-A	3 µin	2	Gold	24 pos	0.215 in		0.55 in	0.1 in	0.1 in	Solder	0.765 in	Black	Surface Mount
Samtec Inc. HW-12-10-G-D-497-SM-A	10 µin	2	Gold	24 pos	0.268 in		0.497 in	0.1 in	0.1 in	Solder	0.765 in	Black	Surface Mount
Samtec Inc. HW-12-10-L-D-525-SM-A	10 µin	2	Gold	24 pos	0.24 in		0.525 in	0.1 in	0.1 in	Solder	0.765 in	Black	Surface Mount
Samtec Inc. HW-12-10-G-D-500-070	10 µin	2	Gold	24 pos	0.26 in	0.07 in	0.5 in	0.1 in	0.1 in	Solder	0.83 in	Black	Through Hole
Samtec Inc. HW-12-10-L-D-497-SM-A	10 µin	2	Gold	24 pos	0.268 in		0.497 in	0.1 in	0.1 in	Solder	0.765 in	Black	Surface Mount
Samtec Inc. HW-12-10-G-T-515-130	10 µin	3	Gold	36	0.185 in	0.13 in	0.515 in	0.1 in	0.1 in	Solder	0.83 in	Black	Through Hole
Samtec Inc. HW-12-10-H-D-435-090	30 µin	2	Gold	24 pos	0.305 in	0.09 in	0.435 in	0.1 in	0.1 in	Solder	0.83 in	Black	Through Hole
Samtec Inc. HW-12-10-G-D-350-SM-A	10 µin	2	Gold	24 pos	0.415 in		0.35 in	0.1 in	0.1 in	Solder	0.765 in	Black	Surface Mount
Samtec Inc. HW-12-10-G-D-465-SM-A	10 µin	2	Gold	24 pos	0.3 in		0.465 in	0.1 in	0.1 in	Solder	0.765 in	Black	Surface Mount
