XPLAWT-00-0000-000HU60E8-SB01
New Energy

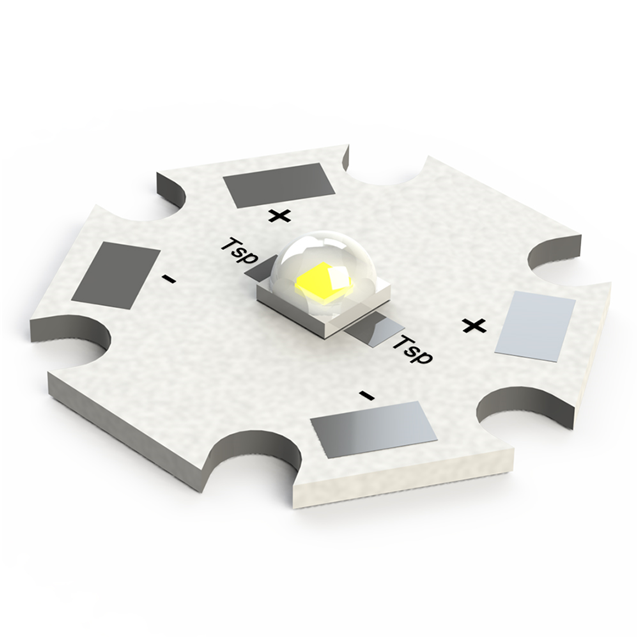

LED MOD XLAMP WHT STARBRD 2700K
Deep-Dive with AI
Search across all available documentation for this part.
XPLAWT-00-0000-000HU60E8-SB01
New Energy
LED MOD XLAMP WHT STARBRD 2700K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XPLAWT-00-0000-000HU60E8-SB01 | XPLAWT Series |
|---|---|---|
| CCT (K) | 2700 K | 2700 - 6500 K |
| Color | White, Warm | Cool, White, Neutral, Warm |
| Configuration | Starboard | Starboard |
| CRI (Color Rendering Index) | 80 | 70 - 80 |
| Current - Max [Max] | 3 A | 3 A |
| Current - Test | 1.05 A | 1.05 A |
| Lens Type | Domed | Domed, Flat |
| Lumens/Watt @ Current - Test | 126 lm/W | 126 - 158 lm/W |
| Luminous Flux @ Current/Temperature | 390 lm | 390 - 490 lm |
| Luminous Flux @ Current/Temperature | - | 480 - 500 lm |
| Size / Dimension [diameter] | 19.89 mm | 19.89 mm |
| Temperature - Test | 85 °C | 85 °C |
| Type | LED Module | LED Module |
| Viewing Angle | 125 ° | 115 - 125 ° |
| Voltage - Forward (Vf) (Typ) | 2.95 V | 2.95 V |
XPLAWT Series
LED MOD XLAMP WHT STARBRD 6500K
| Part | CCT (K) | Current - Test | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature | Lumens/Watt @ Current - Test | Lens Type | Temperature - Test | Configuration | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | Size / Dimension [diameter] | Type | Color | Viewing Angle | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
New Energy XPLAWT-00-0000-0000V60E1-SB01 | 6500 K | 1.05 A | 490 lm | 480 lm, 500 lm | 158 lm/W | Domed | 85 °C | Starboard | 2.95 V | 3 A | 19.89 mm | LED Module | Cool, White | 125 ° | |
New Energy XPLAWT-H0-0000-000BV20E1-SB01 | 6500 K | 1.05 A | 410 lm | 132 lm/W | Flat | 85 °C | Starboard | 2.95 V | 3 A | 19.89 mm | LED Module | Cool, White | 115 ° | 70 | |
New Energy XPLAWT-H0-0000-000BV20E5-SB01 | 4000 K | 1.05 A | 410 lm | 132 lm/W | Flat | 85 °C | Starboard | 2.95 V | 3 A | 19.89 mm | LED Module | Neutral, White | 115 ° | 70 | |
New Energy XPLAWT-00-0000-000HU60E8-SB01 | 2700 K | 1.05 A | 390 lm | 126 lm/W | Domed | 85 °C | Starboard | 2.95 V | 3 A | 19.89 mm | LED Module | Warm, White | 125 ° | 80 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.23 | |
| 10 | $ 11.11 | |||
| 100 | $ 9.29 | |||
| 500 | $ 8.50 | |||
| 1000 | $ 8.24 | |||
Description
General part information
XPLAWT Series
LED Lighting COBs Engines Modules LED Module XLamp® XP-L White, Warm Starboard
