896-072-521-804

Active

EDAC Inc.

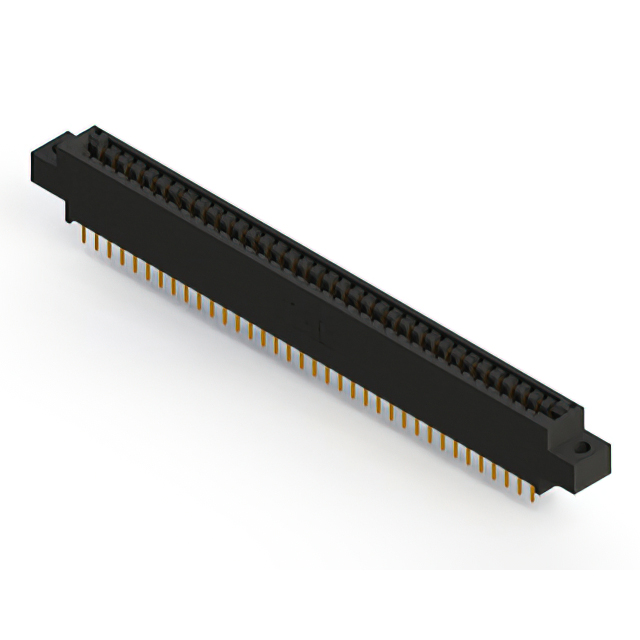

CONN EDGE DUAL FMALE 72POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-072-521-804

Active

EDAC Inc.

CONN EDGE DUAL FMALE 72POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 61.81
Newark	Each	1	$ 74.18
		100	$ 43.91
		250	$ 39.95
		500	$ 36.68
		1000	$ 31.50

Description

General part information

896-072 Series

72 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-072-521-804	896-072 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	-	Card Extender
Flange Feature	Top Mount Opening, Unthreaded	Flush Mount, Top Opening, Unthreaded, Top Mount Opening, 4-40, Threaded Insert, Side Mount Opening, Side Opening, M3, Floating Bobbin
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Flange Feature [diameter]	0.156 in	0.116 - 0.156 in
Flange Feature [diameter]	3.96 mm	2.95 - 3.96 mm
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole	Through Hole, Board Edge, Straddle Mount
Number of Positions	72	72
Number of Positions/Bay/Row [custom]	36	36
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder, Wire Wrap, Solder Eyelet(s)
Termination Rows	2	2

896-072 Series

CONN EDGE DUAL FMALE 72POS 0.125

...

Part	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Color	Contact Finish	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Gender	Number of Positions	Mounting Type	Termination Rows	Number of Positions/Bay/Row [custom]	Card Type	Flange Feature	Flange Feature	Features
EDAC Inc. 896-072-520-204	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Solder	Black	Gold	0.125 in	3.18 mm	Cantilever	2	3.96 mm	Flush Mount, Top Opening, Unthreaded	0.156 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge
EDAC Inc. 896-072-540-804	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Wire Wrap	Black	Gold	0.125 in	3.18 mm	Cantilever	2	3.96 mm	Top Mount Opening, Unthreaded	0.156 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge
EDAC Inc. 896-072-526-808	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Solder	Black	Gold	0.125 in	3.18 mm	Cantilever	2		4-40, Threaded Insert, Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge
EDAC Inc. 896-072-526-201	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Solder	Black	Gold	0.125 in	3.18 mm	Cantilever	2				1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge
EDAC Inc. 896-072-521-812	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Solder	Black	Gold	0.125 in	3.18 mm	Cantilever	2		Side Mount Opening, Unthreaded		1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge	3.25 mm	0.128 in
EDAC Inc. 896-072-555-201	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Solder Eyelet(s)	Black	Gold	0.125 in	3.18 mm	Cantilever	2				1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Board Edge, Straddle Mount	2	36	Non Specified - Dual Edge			Card Extender
EDAC Inc. 896-072-521-212	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Solder	Black	Gold	0.125 in	3.18 mm	Cantilever	2	3.25 mm	Flush Mount, Side Opening, Unthreaded	0.128 "	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge
EDAC Inc. 896-072-526-207	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Solder	Black	Gold	0.125 in	3.18 mm	Cantilever	2		Flush Mount, M3, Threaded Insert, Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge
EDAC Inc. 896-072-540-212	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Wire Wrap	Black	Gold	0.125 in	3.18 mm	Cantilever	2	3.25 mm	Flush Mount, Side Opening, Unthreaded	0.128 "	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge
EDAC Inc. 896-072-500-201	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Copper Alloy	125 °C	-40 °C	Solder Eyelet(s)	Black	Gold	0.125 in	3.18 mm	Cantilever	2				1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Female	72	Through Hole	2	36	Non Specified - Dual Edge
