WLPH201610MR47PS
ActiveWalsin Technology Corporation
POWER CHOKE MOLDED 0.47UH 6.1A
WLPH201610MR47PS
ActiveWalsin Technology Corporation
POWER CHOKE MOLDED 0.47UH 6.1A
Description
General part information
WLPH201610MR47PS

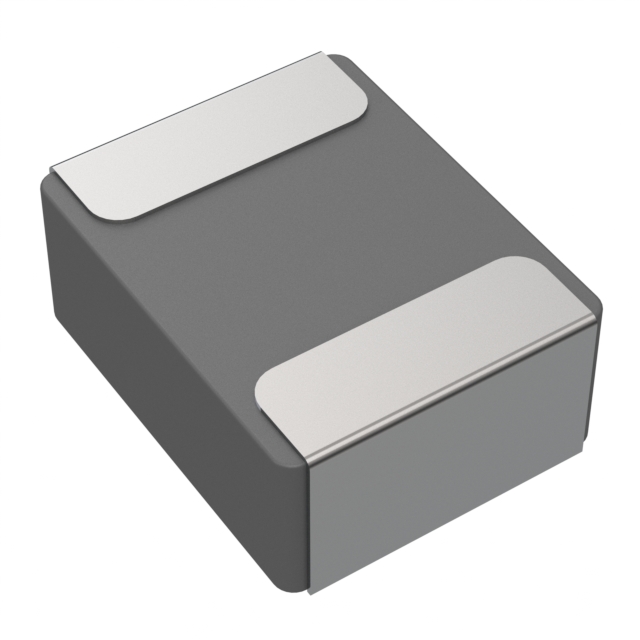

470 nH Shielded Molded Inductor 4.05 A 30mOhm Max 0806 (2016 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | WLPH201610MR47PS |
|---|---|
| Current - Saturation (Isat) | 5.3 A |
| Current Rating | 4.05 A |
| DC Resistance (DCR) (Max) | 30 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Package Name | 0806 |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 20 % |
| Type | Molded |
