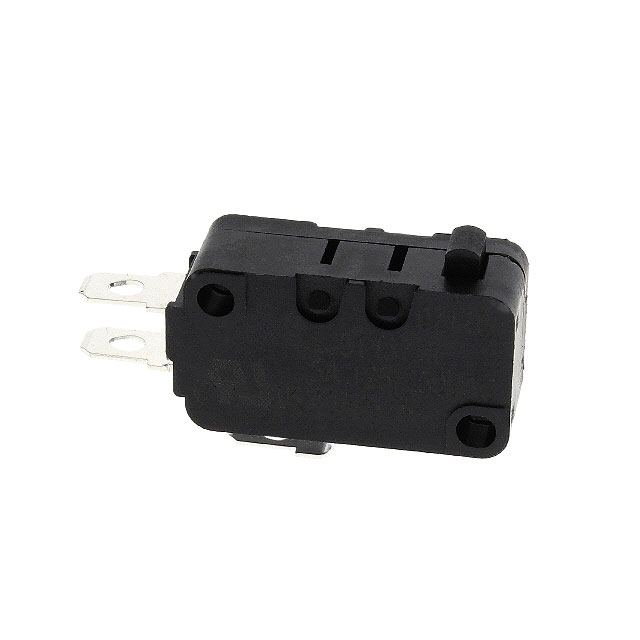

SAJ35XXPP0N49SDTSEQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SAJ35XXPP0N49SDTSEQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SAJ35XXPP0N49SDTSEQ

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	10000 Cycles
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	50 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.039 in
Overtravel	1 mm
Pretravel	0.047 in
Pretravel	1.2 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SAJ35X Series

Part	Pretravel	Pretravel	Voltage Rating - AC	Mechanical Life	Circuit	Mounting Type	Termination Style	Operating Position	Operating Position	Current Rating (Amps)	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Function	Electrical Life	Operating Force	Overtravel	Overtravel	Release Force
TE Connectivity Raychem Cable Protection SAJ35XXPP0N49SDTFAQ	0.047 in	1.2 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.187" (4.7mm)	0.579 in	14.7 mm	5 A	0.016 "	0.4 mm	85 °C	-40 °C	Round (Pin Plunger)	On-Mom	10000 Cycles	50 gf	0.039 in	1 mm
TE Connectivity Raychem Cable Protection SAJ35XXHL0N49SDTSEQ	0.157 in	4 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Solder Lug	0.598 in	15.2 mm	5 A	0.031 "	0.8 mm	85 °C	-40 °C	Lever Straight	On-Mom	10000 Cycles	30 gf	0.062 in	1.6 mm
TE Connectivity Raychem Cable Protection SAJ35XXSRLN49SDTFAQ	0.063 in	1.6 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.187" (4.7mm)	0.815 in	20.7 mm	5 A	0.02 in	0.5 mm	85 °C	-40 °C	Lever Roller	On-Mom	10000 Cycles	60 gf	0.031 in	0.79 mm	4 gf
TE Connectivity Raychem Cable Protection SAJ35XXHL0N49SDTFAQ	0.157 in	4 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.187" (4.7mm)	0.598 in	15.2 mm	5 A	0.031 "	0.8 mm	85 °C	-40 °C	Lever Straight	On-Mom	10000 Cycles	30 gf	0.062 in	1.6 mm
TE Connectivity Raychem Cable Protection SAJ35XXPP0N49SDTSEQ	0.047 in	1.2 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Solder Lug	0.579 in	14.7 mm	5 A	0.016 "	0.4 mm	85 °C	-40 °C	Round (Pin Plunger)	On-Mom	10000 Cycles	50 gf	0.039 in	1 mm
TE Connectivity Raychem Cable Protection SAJ35XXSRLN49SDTSEQ	0.063 in	1.6 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Solder Lug	0.815 in	20.7 mm	5 A	0.02 in	0.5 mm	85 °C	-40 °C	Lever Roller	On-Mom	10000 Cycles	60 gf	0.031 in	0.79 mm	4 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.05
		10	$ 1.89
		25	$ 1.77
		50	$ 1.73
		100	$ 1.39

Description

General part information

SAJ35X Series

Switch SPDT Chassis Mount
