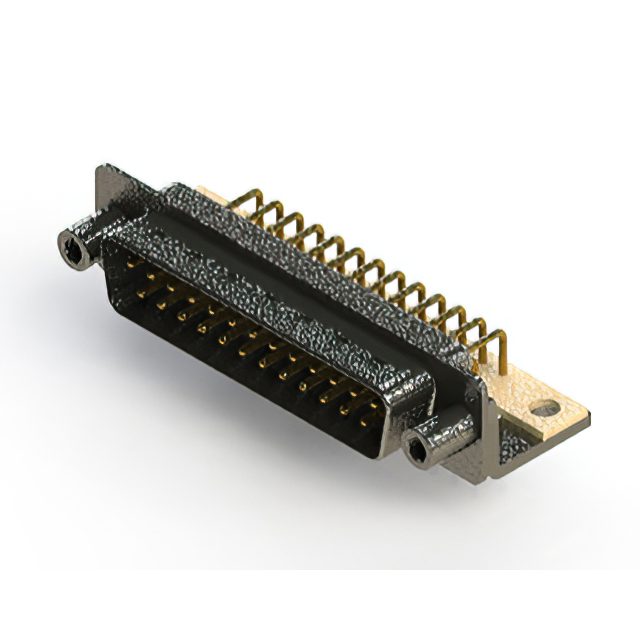

629-M25-240-WT6

Active

EDAC Inc.

629M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-M25-240-WT6

Active

EDAC Inc.

629M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-M25-240-WT6

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

629-M25 Series

...

Part	Number of Rows	Flange Feature	Backset Spacing	Backset Spacing	Mounting Type	Contact Type	Contact Material	Connector Style	Features	Color	Connector Type	Shell Material, Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 629-M25-340-WN6	2	4-40 Board Side	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	Black	Male Pins Plug	Nickel Plated Steel	UL94 V-0	15 µin	0.38 µm	-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A
EDAC Inc. 629-M25-340-LN1	2	Housing/Shell (Unthreaded)	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	Black	Male Pins Plug	Nickel Plated Steel	UL94 V-0	15 µin	0.38 µm	-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A
EDAC Inc. 629-M25-240-WT6	2	4-40 Board Side	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	Black	Male Pins Plug		UL94 V-0			-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A	Flash
EDAC Inc. 629-M25-640-LT2	2	Housing/Shell (4-40)	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	Black	Male Pins Plug		UL94 V-0	30 Áin	0.76 Ám	-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A
EDAC Inc. 629-M25-240-LT5	2	4-40	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Male Pins Plug		UL94 V-0			-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A	Flash
EDAC Inc. 629-M25-640-WN4	2	4-40	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	Black	Male Pins Plug	Nickel Plated Steel	UL94 V-0	30 Áin	0.76 Ám	-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A
EDAC Inc. 629-M25-640-LT1	2	Housing/Shell (Unthreaded)	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	Black	Male Pins Plug		UL94 V-0	30 Áin	0.76 Ám	-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A
EDAC Inc. 629-M25-640-BT1	2	Housing/Shell (Unthreaded)	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	Black	Male Pins Plug		UL94 V-0	30 Áin	0.76 Ám	-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A
EDAC Inc. 629-M25-240-LN3	2	Housing/Shell (4-40)	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	Black	Male Pins Plug	Nickel Plated Steel	UL94 V-0			-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A	Flash
EDAC Inc. 629-M25-240-BN6	2	4-40 Board Side	9.4 mm	0.37 in	Through Hole Right Angle	Signal	Copper Alloy	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	Black	Male Pins Plug	Nickel Plated Steel	UL94 V-0			-55 °C	125 °C	Solder	Gold	B DB	3	Polyamide (PA6T) Nylon 6T	5 A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.86

Description

General part information

629-M25 Series

25 Position D-Sub, Combo Plug, Male Pins Connector
