101TL1-2D

Active

Honeywell Sensing and Productivity Solutions

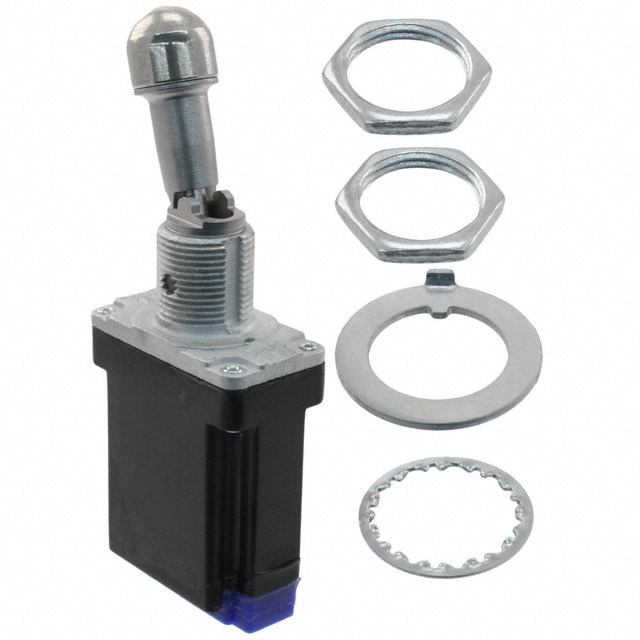

SWITCH TOGGLE SPST 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPST 15A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	101TL1-2D	101TL1 Series

Actuator Length [x]	26.67 mm	17.27 - 26.67 mm
Actuator Material	Nickel Plated	Nickel Plated
Actuator Type	Locking Lever	Locking Lever, Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPST	SPDT, SPST
Current Rating (Amps)	15 A	10 - 15 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-Off	On-Off-Mom, On-On, On-Off, On-Off-On
Termination Style	IWTS	IWTS
Voltage Rating - AC	125 V	125 V

SWITCH TOGGLE SPDT 10A 125V

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Bushing Thread	Switch Function	Actuator Length [x]	Actuator Material	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Illumination	Ingress Protection	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions 101TL1-5M	IWTS	71 °C	-65 ░C	Locking Lever	15/32-32	On-Off-Mom	26.67 mm	Nickel Plated	12.4 mm	10 A	SPDT	Non-Illuminated	Environment Sealed	125 V
Honeywell Sensing and Productivity Solutions 101TL1-3F	IWTS	71 °C	-65 ░C	Locking Lever	15/32-32	On-On	26.67 mm	Nickel Plated	12.4 mm	15 A	SPDT	Non-Illuminated	Environment Sealed	125 V
Honeywell Sensing and Productivity Solutions 101TL1-2D	IWTS	71 °C	-65 ░C	Locking Lever	15/32-32	On-Off	26.67 mm	Nickel Plated	12.4 mm	15 A	SPST	Non-Illuminated	Environment Sealed	125 V
Honeywell Sensing and Productivity Solutions 101TL1-1	IWTS	71 °C	-65 ░C	Standard Round	15/32-32	On-Off-On	17.27 mm	Nickel Plated	12.4 mm	15 A	SPDT	Non-Illuminated	Environment Sealed	125 V
Honeywell Sensing and Productivity Solutions 101TL1-3	IWTS	71 °C	-65 ░C	Standard Round	15/32-32	On-On	17.27 mm	Nickel Plated	12.4 mm	15 A	SPDT	Non-Illuminated	Environment Sealed	125 V
