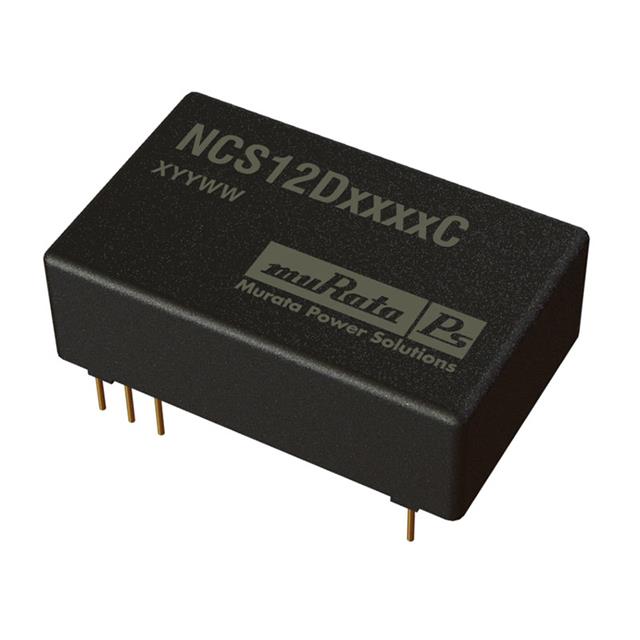

NCS12D1205C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 12W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NCS12D1205C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 12W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NCS12D1205C | NCS12D Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | - | 400 mA |
| Current - Output (Max) | - | 400 mA |
| Current - Output (Max) [Max] | 1.2 A | 1.2 A |
| Current - Output (Max) [Max] | 1.2 A | 1.2 A |
| Efficiency | 81.5 % | 81.5 - 86 % |
| Features | OTP, UVLO, SCP | OTP, UVLO, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9 PC Pad | 9 PC Pad |
| Package / Case | 24-DIP Module | 24-DIP Module |
| Power (Watts) | 12 W | 12 W |
| Size / Dimension [x] | 1.26 in | 1.26 in |
| Size / Dimension [x] | 32 mm | 32 mm |
| Size / Dimension [y] | 0.79 " | 0.79 " |
| Size / Dimension [y] | 20 mm | 20 mm |
| Size / Dimension [z] | 10.5 mm | 10.5 mm |
| Size / Dimension [z] | 0.41 " | 0.41 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 9 V | 9 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 5 V | 5 - 15 V |
| Voltage - Output 2 | -5 V | -15 - -5 V |
NCS12D Series
DC DC CONVERTER +/-15V 12W
| Part | Efficiency | Voltage - Isolation | Number of Outputs | Mounting Type | Voltage - Input (Min) [Min] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Applications | Voltage - Output 1 | Package / Case | Package / Case | Features | Type | Current - Output (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NCS12D1215C | 86 % | 1.5 kV | 2 | Through Hole | 9 V | 12 W | 85 °C | -40 °C | 400 mA | 400 mA | -15 V | 10.5 mm | 0.79 " | 0.41 " | 1.26 in | 32 mm | 20 mm | 36 V | ITE (Commercial) | 15 V | 9 PC Pad | 24-DIP Module | OTP, SCP, UVLO | Isolated Module | ||
Murata Power Solutions Inc. NCS12D1205C | 81.5 % | 1.5 kV | 2 | Through Hole | 9 V | 12 W | 85 °C | -40 °C | -5 V | 10.5 mm | 0.79 " | 0.41 " | 1.26 in | 32 mm | 20 mm | 36 V | ITE (Commercial) | 5 V | 9 PC Pad | 24-DIP Module | OTP, SCP, UVLO | Isolated Module | 1.2 A | 1.2 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NCS12D Series
Isolated Module DC DC Converter 2 Output 5V -5V 1.2A, 1.2A 9V - 36V Input
