EB_NN03-310-M

Active

Ignion

EB_TRIO MXTEND

Search across all available documentation for this part.

Active

Ignion

EB_TRIO MXTEND

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EB_NN03-310-M	EB_NN03 Series

Contents	-	Board(s)
For Use With/Related Products	FR01-S4-210	FR01-S4-210
Frequency	-	1.561 - 1.575 GHz
Frequency [Max]	960 MHz, 2.69 GHz	1.606 - 960 MHz
Frequency [Min]	698 MHz, 1.71 GHz	1.598 - 698 MHz
Supplied Contents	Board(s)	Board(s)
Type	Antenna	Antenna
Utilized IC / Part	-	NN03-320

EB_TRIO MXTEND

Part	Type	Frequency [Min]	Frequency [Max]	Supplied Contents	For Use With/Related Products	Frequency	Contents	Utilized IC / Part
Ignion EB_NN03-310-M	Antenna	1.71 GHz, 698 MHz	2.69 GHz, 960 MHz	Board(s)	FR01-S4-210
Ignion EB_NN03-320-M-GNSS-BT	Antenna	1.598 GHz, 2.4 GHz	1.606 GHz, 2.5 GHz			1.561 GHz, 1.575 GHz	Board(s)	NN03-320

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 75.75

General part information

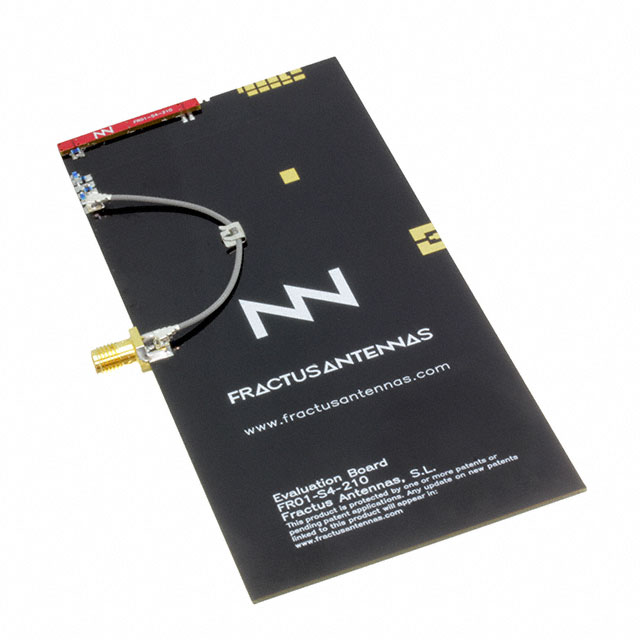

FR01-S4-210 TRIO mXTEND™ Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz Evaluation Board
