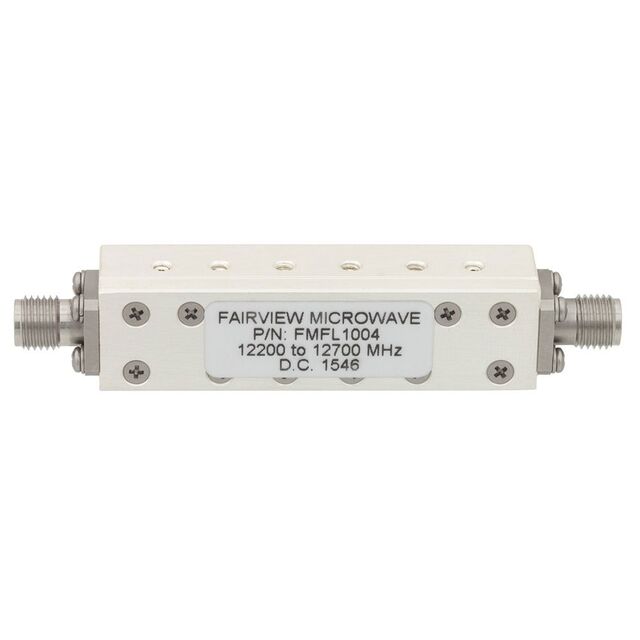

FMFL1004
ActiveFairview Microwave
BANDPASS FILTER 12.2-12.7GHZ SMA
FMFL1004
ActiveFairview Microwave
BANDPASS FILTER 12.2-12.7GHZ SMA
Description
General part information
FMFL1004
12.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) 500MHz Bandwidth 1.5dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | FMFL1004 |
|---|---|
| Bandwidth | 500 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 12.45 GHz |
| Height (Max) | 0.479 in |
| Insertion Loss | 1.5 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 1.929 in |
| Size / Dimension Width | 0.5 in |
