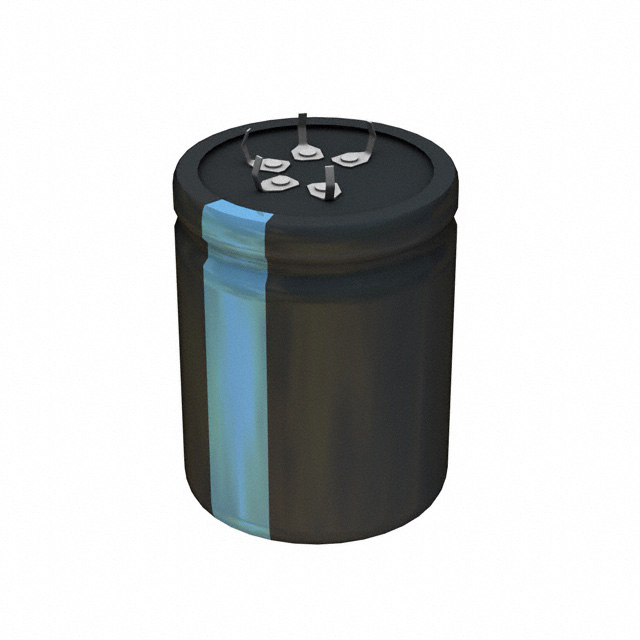

382LX152M400B062VS
ActiveCornell Dubilier Knowles
CAP ALUM 1500UF 20% 400V SNAP TH
382LX152M400B062VS
ActiveCornell Dubilier Knowles
CAP ALUM 1500UF 20% 400V SNAP TH
Description
General part information
382LX152M400B062VS
1500 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 5 Lead 3000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 382LX152M400B062VS |
|---|---|
| Applications | General Purpose |
| Capacitance | 1500 µF |
| Height - Seated (Max) | 2.559 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package Leads | 5 Lead |
| Package Name | Can - Snap-In, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 1.969 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
