PX3233
Activeifm efector, inc.

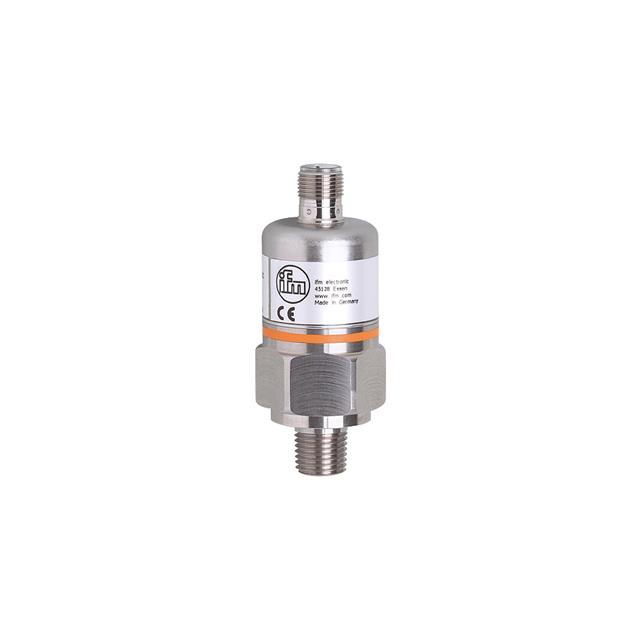

PRESSURE TRANSMITTER, 2WIRE DC,
PX3233
Activeifm efector, inc.
PRESSURE TRANSMITTER, 2WIRE DC,
Description
General part information
PX3233
PRESSURE TRANSMITTER, 2WIRE DC,
Technical Specifications
Parameters and characteristics for this part
| Specification | PX3233 |
|---|---|
| Applications | Industrial Automation |
| Maximum Pressure | 2175.57 PSI |
| Operating Pressure | 250 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | Analog Current |
| Package / Case | Threaded, Cylinder |
| Pin Count | 4 |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Termination Style | M12 |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 9.6 V |
