NTE3024
ActiveNTE Electronics, Inc
LED UNI-COLOR YELLOW 565NM 2-PIN T-1 3/4
NTE3024
ActiveNTE Electronics, Inc
LED UNI-COLOR YELLOW 565NM 2-PIN T-1 3/4
Description
General part information
NTE3024

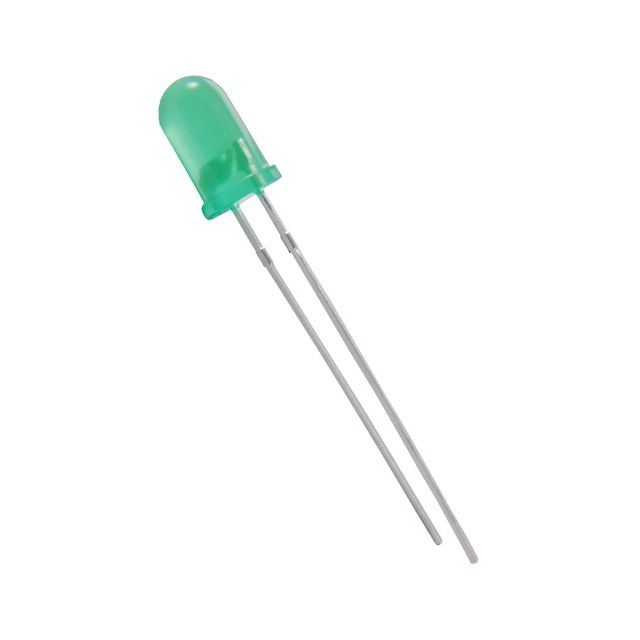

Green 570nm LED Indication - Discrete 2.2V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE3024 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 6.63 mm |
| Lens Color | Green |
| Lens Diameter | 5 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 55 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension Diameter | 5.1 mm |
| Supplier Device Package | 5 mm |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 570 nm |
| Wavelength - Peak | 572 nm |
