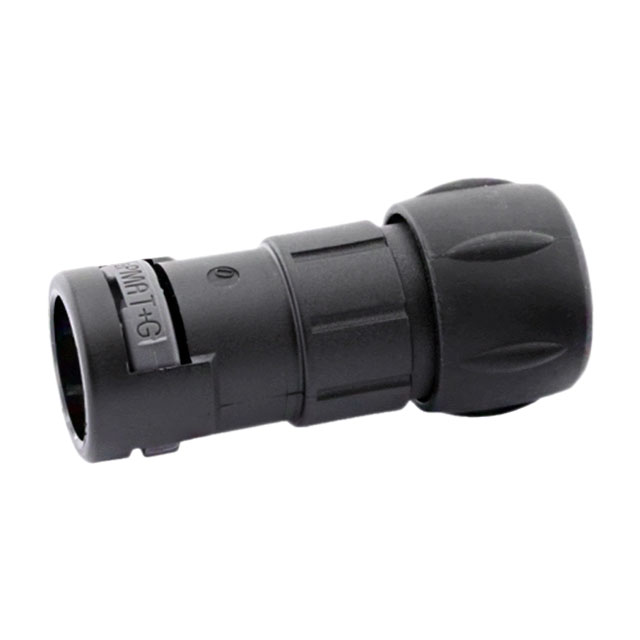

UTS6FC12E10S
ActiveSouriau-Sunbank by Eaton
CONN PLUG FMALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
UTS6FC12E10S
ActiveSouriau-Sunbank by Eaton
CONN PLUG FMALE 10P SOLDER CUP
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | UTS6FC12E10S |
|---|---|
| Applications | Instrumentation, Energy, Lighting, Telecommunications |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16 Áin |
| Contact Finish Thickness - Mating | 0.41 Ám |
| Contact Material | Brass |
| Current Rating (Amps) | 4.5 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell, UV Resistant, Conduit Adapter, Coupling Nut |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polychloroprene |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
UTS6F Series
| Part | Contact Size | Mounting Type | Material Flammability Rating | Orientation | Ingress Protection | Note | Fastening Type | Type | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Shell Size - Insert | Number of Positions | Connector Type | Features | Contact Shape | Shielding | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Current Rating (Amps) | Contact Material | Color | Applications | Backshell Material, Plating | Voltage Rating | Insert Material | Primary Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | 16 | Free Hanging (In-Line) | UL94 V-0 | N | IP68 IP69K | Contacts Not Included | Bayonet Lock | For Male Pins | Black | -40 °C | 105 ░C | Crimp | 12-4 | 4 | Plug Housing | Backshell Coupling Nut | Circular | Unshielded | |||||||||||||||
Souriau-Sunbank by Eaton | 16 | Free Hanging (In-Line) | UL94 V-0 | N | IP68 IP69K | Contacts Not Included | Bayonet Lock | For Female Sockets | Black | -40 °C | 105 ░C | Crimp | 23 | Plug Housing | Backshell Coupling Nut | Circular | Unshielded | 18 | 23 | ||||||||||||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | UL94 HB | N | IP68 IP69K | Bayonet Lock | -40 °C | 105 ░C | 14-5 | Female Sockets Plug | Backshell Conduit Adapter Coupling Nut UV Resistant | Unshielded | 12 A | Brass | Black | Energy Instrumentation Lighting Telecommunications | Nylon Polyamide (PA) | 600 V | Polychloroprene | Plastic | Gold | 16 Áin | 0.41 Ám | |||||||||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | UL94 HB | N | IP68 IP69K | Bayonet Lock | -40 °C | 105 ░C | 12-3 | Male Pins Plug | Backshell Conduit Adapter Coupling Nut UV Resistant | Unshielded | 13 A | Brass | Black | Energy Instrumentation Lighting Telecommunications | Nylon Polyamide (PA) | 600 V | Polychloroprene | Plastic | Gold | 16 Áin | 0.41 Ám | |||||||||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | UL94 HB | N | IP68 IP69K | Bayonet Lock | -40 °C | 105 ░C | 14 | Male Pins Plug | Backshell Conduit Adapter Coupling Nut UV Resistant | Unshielded | 4.5 A | Brass | Black | Energy Instrumentation Lighting Telecommunications | Nylon Polyamide (PA) | 250 VDC | Polychloroprene | Plastic | Gold | 16 Áin | 0.41 Ám | 12 | 14 | |||||||||
Souriau-Sunbank by Eaton | 20 | Free Hanging (In-Line) | UL94 V-0 | N | IP68 IP69K | Contacts Not Included | Bayonet Lock | For Female Sockets | Black | -40 °C | 105 ░C | Crimp | Plug Housing | Backshell Coupling Nut | Circular | Unshielded | 18 | 32 | |||||||||||||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | UL94 HB | N | IP68 IP69K | Bayonet Lock | -40 °C | 105 ░C | 12-8 | 8 | Male Pins Plug | Backshell Conduit Adapter Coupling Nut UV Resistant | Unshielded | 4.5 A | Brass | Black | Energy Instrumentation Lighting Telecommunications | Nylon Polyamide (PA) | 250 VDC | Polychloroprene | Plastic | Gold | 16 Áin | 0.41 Ám | ||||||||||
Souriau-Sunbank by Eaton | 16 | Free Hanging (In-Line) | UL94 V-0 | N | IP68 IP69K | Contacts Not Included | Bayonet Lock | For Female Sockets | Black | -40 °C | 105 ░C | Crimp | 14-12 | 12 | Plug Housing | Backshell Coupling Nut | Circular | Unshielded | |||||||||||||||
Souriau-Sunbank by Eaton | 20 | Free Hanging (In-Line) | UL94 V-0 | N | IP68 IP69K | Contacts Not Included | Bayonet Lock | For Female Sockets | Black | -40 °C | 105 ░C | Crimp | 19 | Plug Housing | Backshell Coupling Nut | Circular | Unshielded | 14 | 19 | ||||||||||||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | UL94 HB | N | IP68 IP69K | Bayonet Lock | -40 °C | 105 ░C | 15 | Female Sockets Plug | Backshell Conduit Adapter Coupling Nut UV Resistant | Unshielded | 12 A | Brass | Black | Energy Instrumentation Lighting Telecommunications | Nylon Polyamide (PA) | 600 V | Polychloroprene | Plastic | Gold | 16 Áin | 0.41 Ám | 14 | 15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UTS6F Series
10 Position Circular Connector Plug, Female Sockets Solder Cup
