DCE.91.094.BVM

Active

LEMO

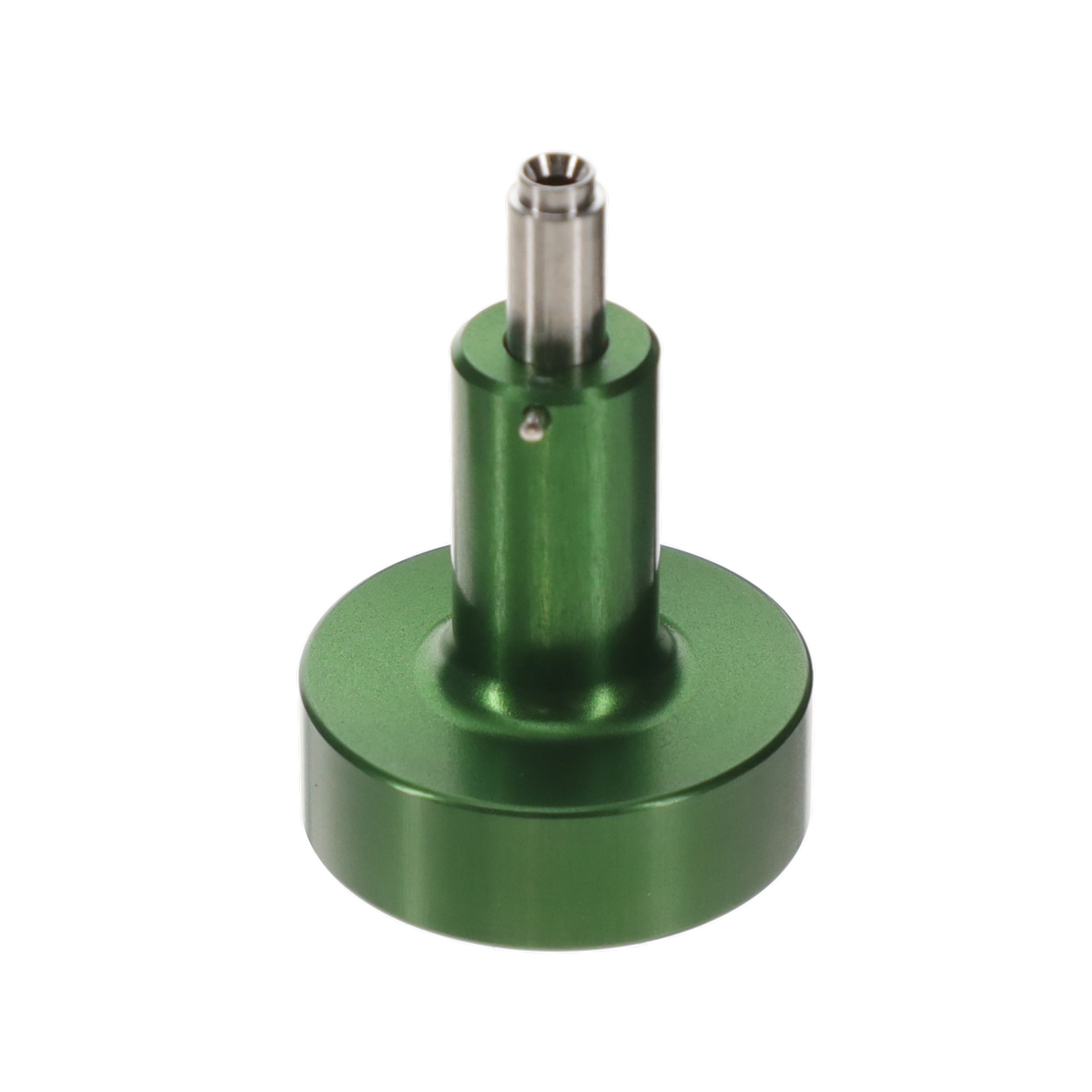

TOOL POSITIONER FOR CRIMP SKT

Search across all available documentation for this part.

Active

LEMO

TOOL POSITIONER FOR CRIMP SKT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tool Positioner For Circular Contacts, 20-26 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	DCE.91.094.BVM	DCE.91 Series

Cable Group	-	RG-174, 188, 316
Compatible Tools	DPC.91.701.V, DPC.91.701.C	DPC.91.701.V, DPC.91.701.C, DPC.91.101.A
For Use With/Related Products	Circular Contacts, 20-26 AWG	Contacts, 22-32 AWG, Contacts, Circular Contacts, 20-26 AWG, Contacts, 28-32 AWG, Circular Contacts, Circular Contacts, 28-32 AWG, Coaxial, RF Contacts, Circular Contacts, 18-20 AWG, Circular Contacts, 22-26 AWG, Circular Contacts, 12-18 AWG, Circular Contacts, 16-20 AWG, Fiber Optic Contacts, Circular Contacts, 22-32 AWG
For Use With/Related Products	-	14 - 26 AWG
For Use With/Related Products	-	10 - 20 AWG
Tool Type	Positioner	Positioner, Turret Head

TOOL POSITIONER FOR CRIMP PIN

Part	Tool Type	For Use With/Related Products	Compatible Tools	For Use With/Related Products [Max]	For Use With/Related Products [Min]
LEMO DCE.91.071.BVC	Positioner	Contacts, 22-32 AWG	DPC.91.701.C, DPC.91.701.V
LEMO DCE.91.131.BVC	Positioner	Contacts	DPC.91.701.C, DPC.91.701.V	24 AWG	18 AWG
LEMO DCE.91.094.BVM	Positioner	Circular Contacts, 20-26 AWG	DPC.91.701.C, DPC.91.701.V
LEMO DCE.91.050.0VC	Positioner	Contacts, 28-32 AWG	DPC.91.701.C, DPC.91.701.V
LEMO DCE.91.092.BVM	Positioner	Contacts	DPC.91.701.C, DPC.91.701.V	26 AWG	20 AWG
LEMO DCE.91.303.BVCM	Turret Head	Circular Contacts	DPC.91.701.V	14 AWG	10 AWG
LEMO DCE.91.133.BVM	Positioner	Contacts	DPC.91.701.C, DPC.91.701.V	20 AWG	18 AWG
LEMO DCE.91.133.BVC	Positioner	Contacts	DPC.91.701.C, DPC.91.701.V	24 AWG	18 AWG
LEMO DCE.91.071.FVM	Positioner	Contacts, 22-32 AWG	DPC.91.701.C, DPC.91.701.V
LEMO DCE.91.090.AVC	Positioner	Circular Contacts, 28-32 AWG	DPC.91.701.C, DPC.91.701.V
