Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2940430 | 29404 Series |
|---|---|---|
| Approval Agency | - | UL, EAC, cULus |
| Coil Current | 4 mA | 4 - 10 mA |
| Coil Resistance | - | 4.8 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 48 - 230 VAC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A | 5 A |
| Features | Socket Included | Socket Included, Lighted Indicator |
| Load - Max Switching | - | 120 - 1250 VA |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 7 ms | 7 - 8 ms |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 3 ms | 3 - 10 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29404 Series

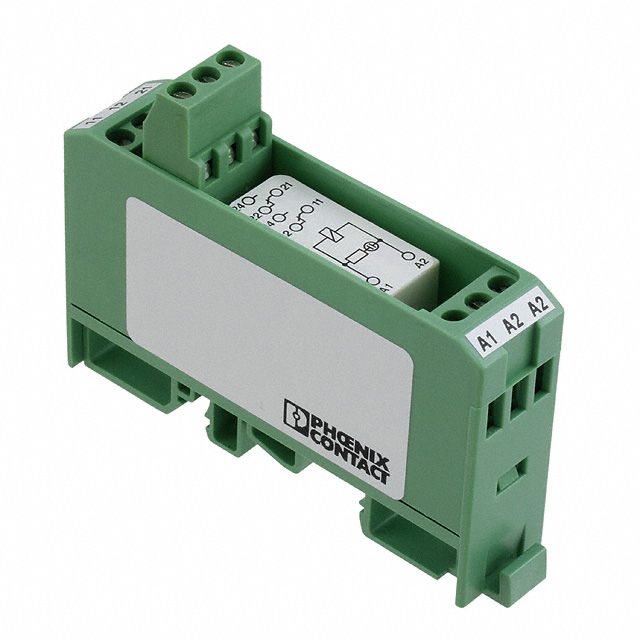

RELAY GEN PURPOSE DPDT 5A 120V
| Part | Termination Style | Features | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Mounting Type | Release Time | Coil Current | Contact Rating (Current) | Switching Voltage | Contact Material | Relay Type | Operate Time | Contact Form | Coil Type | Load - Max Switching | Coil Resistance | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2940427 | Screw Terminal | Socket Included | -20 C | 40 °C | 120 VAC, 120 VDC | DIN Rail | 10 ms | 6 mA | 5 A | 250 VAC, 250 VDC | Silver Nickel (AgNi) | General Purpose | 8 ms | DPDT (2 Form C) | Non Latching | |||
Phoenix Contact 2940401 | Screw Terminal | Lighted Indicator, Socket Included | -20 C | 40 °C | 48 VAC/DC | DIN Rail | 10 ms | 10 mA | 5 A | 250 VAC, 250 VDC | Silver Nickel (AgNi) | General Purpose | 8 ms | DPDT (2 Form C) | Non Latching | 120 W, 1250 VA | 4.8 kOhms | cULus, EAC, UL |
Phoenix Contact 2940430 | Screw Terminal | Socket Included | -20 C | 40 °C | 230 VAC | DIN Rail | 3 ms | 4 mA | 5 A | 250 VAC, 250 VDC | Silver Nickel (AgNi) | General Purpose | 7 ms | DPDT (2 Form C) | Non Latching |
