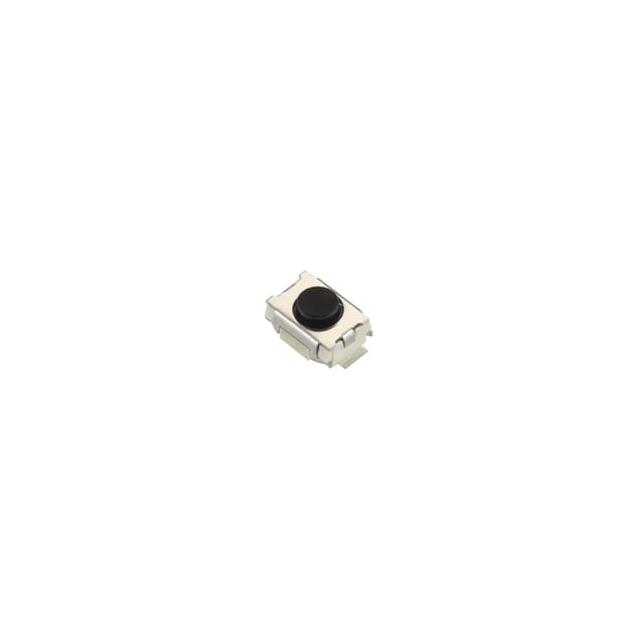

SKRKAHE020 - SKRKAHE020

SKRKAHE020

Active
Alps Alpine

SWITCH TACTILE N.O. SPST ROUND BUTTON GULL WING 0.05A 12VDC 0.98N SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
SKRKAHE020 - SKRKAHE020

SKRKAHE020

Active
Alps Alpine

SWITCH TACTILE N.O. SPST ROUND BUTTON GULL WING 0.05A 12VDC 0.98N SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationSKRKAHE020
Actuator Height off PCB, Vertical [z]2 mm
Actuator OrientationTop Actuated
Actuator TypeStandard
CircuitSPST-NO
Contact Rating @ Voltage0.05 A, 12 VDC
IlluminationNon-Illuminated
Mechanical Life200000 Cycles
Mounting TypeSurface Mount
Operating Force100 gf
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Outline [x]3.9 mm
Outline [y]2.9 mm
Switch FunctionOff-Mom
Switch Travel0.13 mm
Termination StyleSMD (SMT) Tab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 5$ 0.47
50$ 0.34
100$ 0.33
200$ 0.33
500$ 0.28
DigikeyCut Tape (CT) 1$ 0.76
10$ 0.73
25$ 0.71
100$ 0.61
250$ 0.56
500$ 0.52
1000$ 0.47
Digi-Reel® 1$ 0.76
10$ 0.73
25$ 0.71
100$ 0.61
250$ 0.56
500$ 0.52
1000$ 0.47
Tape & Reel (TR) 4500$ 0.44
9000$ 0.41
13500$ 0.38

Description

General part information

SKRKAHE020

Tactile Switch SPST-NO Top Actuated Surface Mount
