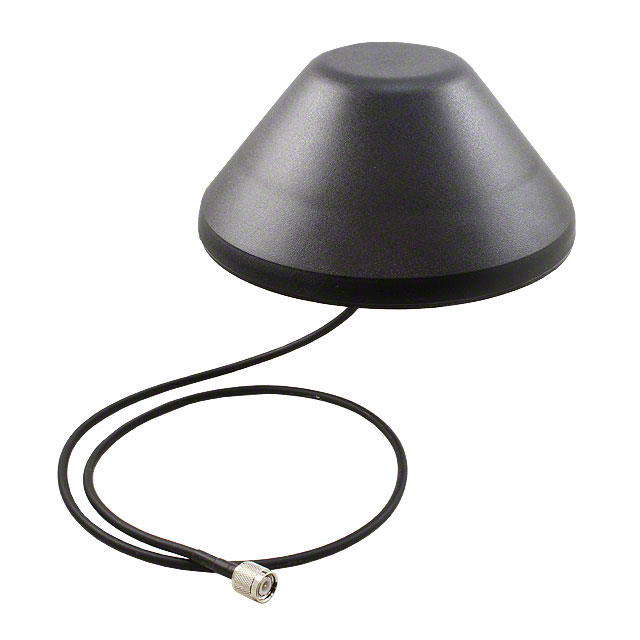

SMS69273-91TNM
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 700MHZ/850MHZ DOME PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS69273-91TNM |
|---|---|
| Antenna Type | Dome |
| Applications | MDS, GSM, LTE, UMTS, DCS, AWS |
| Features | 914 mm |
| Features | Cable |
| Frequency (Center/Band) | 900 MHz, 850 MHz, 1.9 GHz, 2.1 GHz, 1.8, 700 MHz, 2.6 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 2.7 GHz |
| Frequency Range [Min] | 698 MHz, 1.71 GHz |
| Gain | 0.8 dBi, 0.2 dBi |
| Height (Max) | 87 mm |
| Height (Max) | 3.425 in |
| Ingress Protection | IP67 |
| Number of Bands | 2 |
| Power - Max [Max] | 3 W |
| RF Family/Standard | Cellular |
| Termination | TNC Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMS69273 Series
RF ANTENNA AWS, DCS, GSM, LTE, MDS, UMTS Dome TNC Male Panel Mount
