WP710A10ZGC

Active

Kingbright

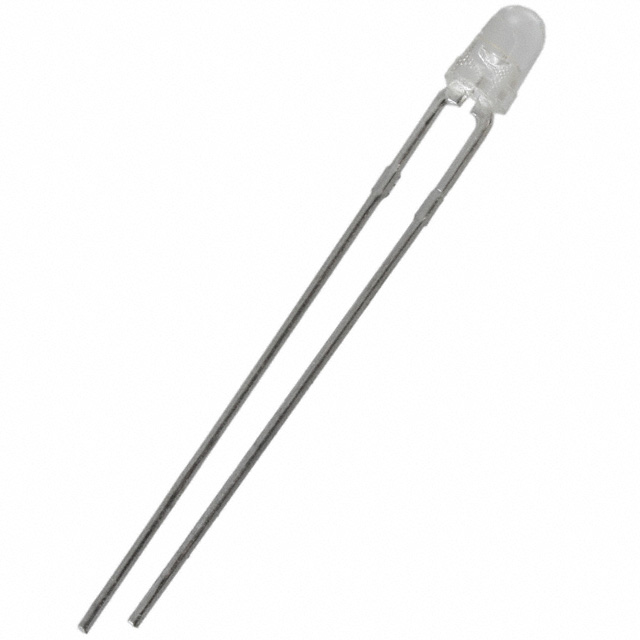

LED GREEN CLEAR T-1 T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP710A10ZGC

Active

Kingbright

LED GREEN CLEAR T-1 T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WP710A10ZGC	WP710 Series

Color	Green	Yellow, Red, Green, Blue
Configuration	Standard	Standard
Current - DC Forward (If) (Max)	-	50 mA
Current - Test	20 mA	2 - 20 mA
Height (Max) [Max] [z]	5.9 mm	5.9 mm
Lens Color	Colorless	Colorless, Green, Orange, Red, Yellow
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	9000 mcd	0.6 - 14000 mcd
Mounting Type	Through Hole	Through Hole
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Orientation	-	Top View
Package / Case	Radial	Radial
Package / Case	-	3 mm
Radiant Intensity (Ie) Min @ If	-	7 - 12 mW/sr
Size / Dimension [diameter]	2.9 mm	2.9 mm
Supplier Device Package	T-1	T-1, T-1 (3mm)
Type	-	Infrared (IR)
Viewing Angle	34 °	20 - 34 °
Viewing Angle	-	40 °
Voltage - Forward (Vf) (Typ)	3.3 V	1.3 - 10.5 V
Wavelength	-	880 - 940 nm
Wavelength - Dominant	525 nm	465 - 640 nm
Wavelength - Dominant	-	611 nm
Wavelength - Peak	515 nm	460 - 660 nm
Wavelength - Peak	-	640 nm

WP710 Series

LED YELLOW CLEAR T-1 T/H

Part	Voltage - Forward (Vf) (Typ)	Lens Size	Lens Size	Lens Style	Wavelength - Dominant	Current - Test	Wavelength - Peak	Package / Case	Supplier Device Package	Mounting Type	Lens Transparency	Configuration	Millicandela Rating	Color	Viewing Angle	Height (Max) [Max] [z]	Size / Dimension [diameter]	Lens Color	Viewing Angle [custom]
Kingbright WP710A10SYCK/J3	2 V	3 mm	T-1	Round with Domed Top	590 nm	20 mA	590 nm	Radial	T-1	Through Hole	Clear	Standard	2600 mcd	Yellow	34 °	5.9 mm	2.9 mm	Colorless
Kingbright WP710A10SURC/E	1.9 V	3 mm	T-1	Round with Domed Top	630 nm	20 mA	645 nm	Radial	T-1	Through Hole	Clear	Standard	400 mcd	Red	34 °	5.9 mm	2.9 mm	Colorless
Kingbright WP710A10SYCK	2 V	3 mm	T-1	Round with Domed Top	590 nm	20 mA	590 nm	Radial	T-1	Through Hole	Clear	Standard	1300 mcd	Yellow	34 °	5.9 mm	2.9 mm	Colorless
Kingbright WP710A10GD14V	10.5 V	3 mm	T-1	Round with Domed Top	568 nm		565 nm	Radial	T-1	Through Hole	Diffused	Standard	20 mcd	Green		5.9 mm	2.9 mm	Green	40 °
Kingbright WP710A10ED	2 V	3 mm	T-1	Round with Domed Top	617 nm	20 mA	627 nm	Radial	T-1	Through Hole	Diffused	Standard	20 mcd			5.9 mm	2.9 mm	Orange	40 °
Kingbright WP710A10EC	2 V	3 mm	T-1	Round with Domed Top	617 nm	20 mA	627 nm	Radial	T-1	Through Hole	Clear	Standard	30 mcd	Red	34 °	5.9 mm	2.9 mm	Colorless
Kingbright WP710A10GD5V	5 V	3 mm	T-1	Round with Domed Top	568 nm	11.5 mA	565 nm	Radial	T-1	Through Hole	Diffused	Standard	25 mcd	Green		5.9 mm	2.9 mm	Green	40 °
Kingbright WP710A10SYC/J3	2 V	3 mm	T-1	Round with Domed Top	590 nm	20 mA	590 nm	Radial	T-1	Through Hole	Clear	Standard	2800 mcd	Yellow	34 °	5.9 mm	2.9 mm	Colorless
Kingbright WP710A10ND	2.05 V	3 mm	T-1	Round with Domed Top	602 nm	20 mA	607 nm	Radial	T-1	Through Hole	Diffused	Standard	20 mcd			5.9 mm	2.9 mm	Orange	40 °
Kingbright WP710A10ID	2 V	3 mm	T-1	Round with Domed Top	617 nm	20 mA	627 nm	Radial	T-1	Through Hole	Diffused	Standard	20 mcd	Red		5.9 mm	2.9 mm	Red	40 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.54
		10	$ 0.36
		100	$ 0.24
		2000	$ 0.17
		6000	$ 0.15
		10000	$ 0.15

Description

General part information

WP710 Series

Green 525nm LED Indication - Discrete 3.3V Radial
