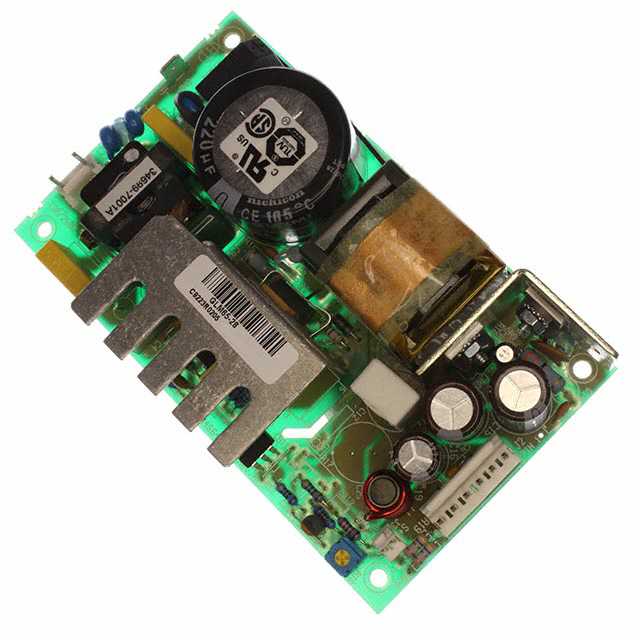

GLM65-28
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 28V 65W
GLM65-28
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 28V 65W
Description
General part information
GLM65-28
Open Frame AC DC Converters 1 Output 28V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | GLM65-28 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, TUV, CE |
| Current - Output 1 | 2.3 A |
| Efficiency | 80 % |
| Features | Universal Input, Adjustable Output, Remote Sense |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 65 W |
| Size / Dimension Height | 1.25 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 28 V |
