Description
General part information

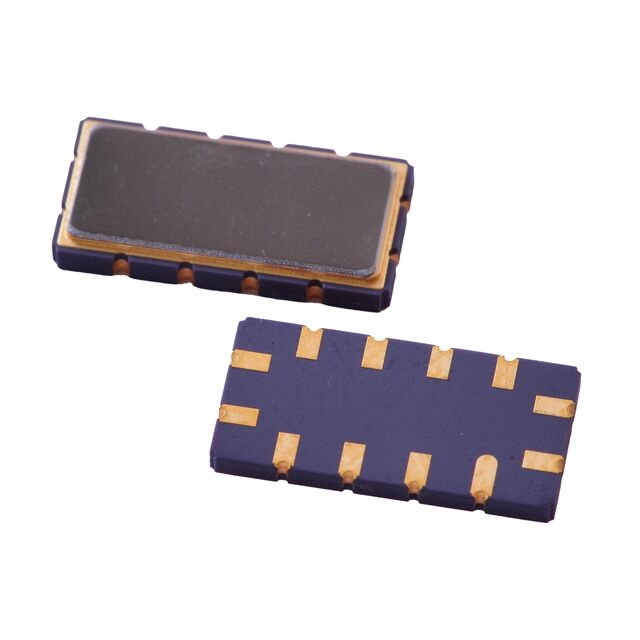

TB0505A
70MHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 6dB Bandwidth 12-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TB0505A |
|---|---|
| Applications | General Purpose |
| Frequency - Center | 70 MHz |
| Height (Max) | 0.063 in |
| Insertion Loss | 6 dB |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD, No Lead |
| Size / Dimension Length | 0.524 in |
| Size / Dimension Width | 0.256 in |
