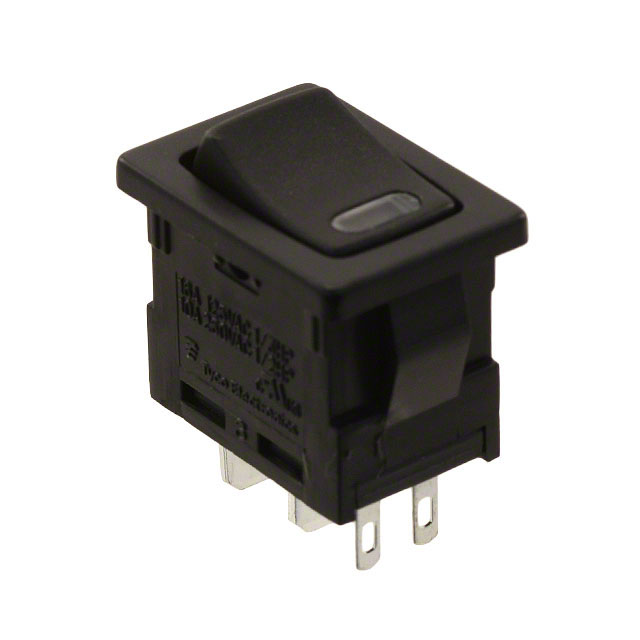

PRASC1-16F-BBR00
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRASC1-16F-BBR00 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | ENEC, UL, VDE |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Red, LED |
| Ingress Protection | Dust Proof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 13 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.59 | |
| 10 | $ 2.32 | |||
| 25 | $ 2.21 | |||
| 50 | $ 2.10 | |||
| 100 | $ 2.00 | |||
| 300 | $ 1.91 | |||
| 500 | $ 1.90 | |||
Description
General part information
PRASC1 Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
