LSA28-M1M1-S18

Active

ConductRF

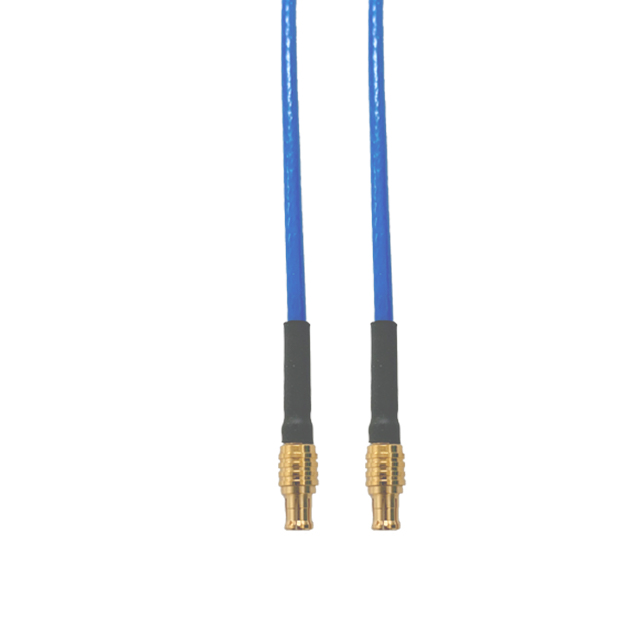

CBL ASSY MCX PLUG TO PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSA28-M1M1-S18

Active

ConductRF

CBL ASSY MCX PLUG TO PLUG 18"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LSA28-M1M1-S18	LSA28 Series

1st Connector	MCX Plug	SMA Jack, Right Angle, MCX Plug, SMA Plug, MMCX Plug
1st Connector Mounting Feature	-	Bulkhead - Front Side Nut
1st Connector Mounting Type	Free Hanging (In-Line)	Panel Mount, Free Hanging (In-Line)
1st Contact Gender	Male	Female, Male
2nd Connector	MCX Plug	SMA Plug, MCX Plug, SMA Plug, Right Angle, MMCX Plug, MMCX Plug, Right Angle, MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	0.085 "	0.085 "
Cable Type	-	2.18mm OD Coaxial Cable
Color	Blue	Blue
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	6000 MHz	18 - 6000 GHz
Length	-	16 in
Length	-	5 - 48 "
Length	-	1.5 - 1200 mm
Length	-	4 - 5 ft
Length [x]	457.2 mm	457.2 mm
Length [x]	457.2 mm	406.4 - 457.2 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	MCX to MCX	SMA to SMA, MCX to MCX, MMCX to MMCX, SMA to MMCX, SMA to MCX

LSA28 Series

CBL ASSY SMA JACK TO PLUG 16"

Part	Connector Impedance	Overall Impedance	Cable Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector	1st Connector Mounting Type	2nd Connector	2nd Connector Mounting Type	Color	1st Contact Gender	Length [x]	Length [x]	2nd Contact Gender	1st Connector Mounting Feature	Frequency - Max [Max]	Style	Length	Length	Cable Type	Length [x]
ConductRF LSA28-S1S3-S16	50 Ohms	50 Ohms	2.18mm OD Coaxial Cable	Shielded	-55 °C	125 °C	SMA Jack	Panel Mount	SMA Plug	Free Hanging (In-Line)	Blue	Female	406.4 mm	16 in	Male	Bulkhead - Front Side Nut	18 GHz	SMA to SMA
ConductRF LSA28-M1M2-S12	50 Ohms	50 Ohms		Shielded	-55 °C	125 °C	MCX Plug, Right Angle	Free Hanging (In-Line)	MCX Plug	Free Hanging (In-Line)	Blue	Male			Male		6000 MHz	MCX to MCX	12 "	304.8 mm	0.085 "
ConductRF LSA28-S2S2-S24	50 Ohms	50 Ohms	2.18mm OD Coaxial Cable	Shielded	-55 °C	125 °C	Right Angle, SMA Plug	Free Hanging (In-Line)	SMA Plug, Right Angle	Free Hanging (In-Line)	Blue	Male			Male		18 GHz	SMA to SMA	24 "	609.6 mm
ConductRF LSA28-1M1M-S06	50 Ohms	50 Ohms		Shielded	-55 °C	125 °C	MMCX Plug	Free Hanging (In-Line)	MMCX Plug	Free Hanging (In-Line)	Blue	Male			Male		6000 MHz	MMCX to MMCX	6 in	152.4 mm	0.085 "
ConductRF LSA28-S1S2-S24	50 Ohms	50 Ohms	2.18mm OD Coaxial Cable	Shielded	-55 °C	125 °C	SMA Plug	Free Hanging (In-Line)	SMA Plug, Right Angle	Free Hanging (In-Line)	Blue	Male			Male		18 GHz	SMA to SMA	24 "	609.6 mm
ConductRF LSA28-S2S2-S12	50 Ohms	50 Ohms	2.18mm OD Coaxial Cable	Shielded	-55 °C	125 °C	Right Angle, SMA Plug	Free Hanging (In-Line)	SMA Plug, Right Angle	Free Hanging (In-Line)	Blue	Male			Male		18 GHz	SMA to SMA	12 "	304.8 mm
ConductRF LSA28-S11M-S12	50 Ohms	50 Ohms		Shielded	-55 °C	125 °C	SMA Plug	Free Hanging (In-Line)	MMCX Plug	Free Hanging (In-Line)	Blue	Male			Male		6000 MHz	SMA to MMCX	12 "	304.8 mm	0.085 "
ConductRF LSA28-S2M1-S18	50 Ohms	50 Ohms	2.18mm OD Coaxial Cable	Shielded	-55 °C	125 °C	MCX Plug	Free Hanging (In-Line)	SMA Plug, Right Angle	Free Hanging (In-Line)	Blue	Male	457.2 mm		Male		18 GHz	SMA to MCX				457.2 mm
ConductRF LSA28-S12M-S18	50 Ohms	50 Ohms		Shielded	-55 °C	125 °C	SMA Plug	Free Hanging (In-Line)	MMCX Plug, Right Angle	Free Hanging (In-Line)	Blue	Male	457.2 mm		Male		6000 MHz	SMA to MMCX			0.085 "	457.2 mm
ConductRF LSA28-1M1M-S12	50 Ohms	50 Ohms		Shielded	-55 °C	125 °C	MMCX Plug	Free Hanging (In-Line)	MMCX Plug	Free Hanging (In-Line)	Blue	Male			Male		6000 MHz	MMCX to MMCX	12 "	304.8 mm	0.085 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.37
		5	$ 34.23
		10	$ 32.33
		25	$ 29.10
		50	$ 26.45
		100	$ 25.30
		250	$ 24.24
		500	$ 23.28
		1000	$ 22.39

Description

General part information

LSA28 Series

Cable Assembly Coaxial MCX to MCX 0.085" Flexible Cable 18.00" (457.20mm)
