100023062

Active

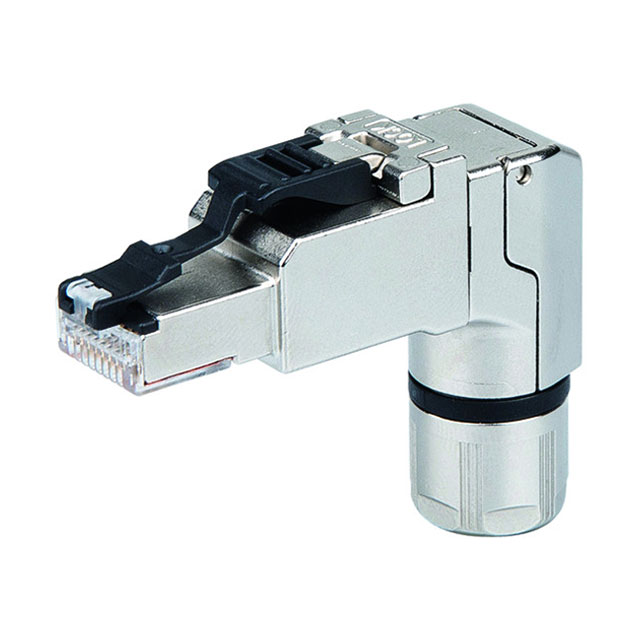

Telegartner Inc

CU-CN MFP8-4X90 T568B C6A D1-1.6

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN MFP8-4X90 T568B C6A D1-1.6

Technical Specifications

Parameters and characteristics for this part

Specification	100023062

Cable Type	Round Cable, Solid, Stranded Wires
Color	Black
Connector Type	Plug
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Strain Relief, Locking Hook, Protective Cap
Housing Material	Polycarbonate (PC)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat6a
Shield Material	Brass
Shielding	Shielded
Termination	IDC
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	22 AWG

CU-CN MFP8-4X90 T568B C6A D1-1.6

Part	Contact Finish	Features	Cable Type	Housing Material	Ratings	Termination	Shield Material	Connector Type	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Shielding	Color	Number of Positions/Contacts
Telegartner Inc 100023062	Tin	Locking Hook, Protective Cap, Strain Relief	Round Cable, Solid, Stranded Wires	Polycarbonate (PC)	Cat6a	IDC	Brass	Plug	Phosphor Bronze	22 AWG	27 AWG	Shielded	Black	8p8c (RJ45, Ethernet)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
