FFSD-14-D-36.00-01-N

Active

Samtec Inc.

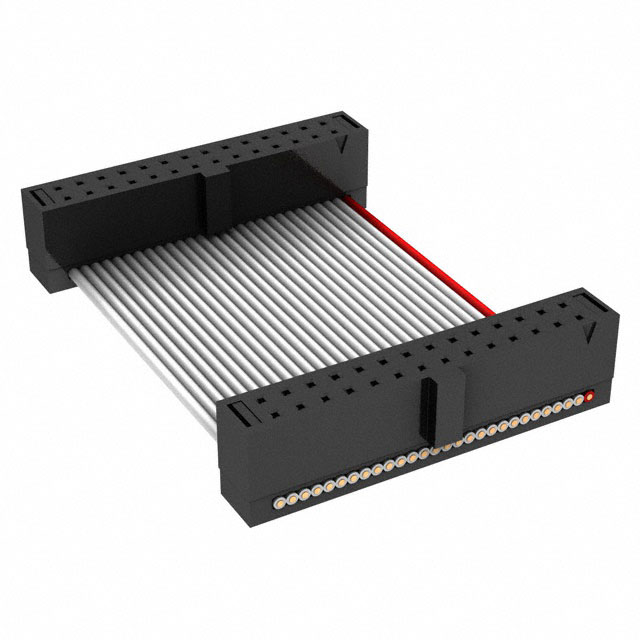

CABLE ASSEMBLY 0.914M 30AWG 1.27MM 28 TO 28 POS IDC CONNECTOR TO IDC CONNECTOR F-F TIGER EYE™ BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFFSD Datasheet Datasheet

FFSD-14-D-36.00-01-N

Active

Samtec Inc.

CABLE ASSEMBLY 0.914M 30AWG 1.27MM 28 TO 28 POS IDC CONNECTOR TO IDC CONNECTOR F-F TIGER EYE™ BULK

Deep-Dive with AI

DocumentsFFSD Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-14-D-36.00-01-N

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	28
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-14 Series

Part	Number of Rows	Shielding	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Contact Finish	Length [x]	Length [x]	Length [x]	Number of Positions	Connector Type	Pitch - Cable [x]	Pitch - Cable	Features	Length	Length	Length	Length	Row Spacing	Row Spacing	Mounting Type	Wire Type	Contact Type	Wire Gauge	Color	Pitch [x]	Pitch [x]
Samtec Inc. FFSD-14-D-04.00-01-N	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold	4 "	0.333 ft	101.6 mm	28	Socket to Socket	0.025 in	0.64 mm	Polarizing Key
Samtec Inc. FFSD-14-D-05.10-01-N	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold				28	Socket to Socket	0.025 in	0.64 mm	Polarizing Key
Samtec Inc. FFSD-14-D-04.80-01-N	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold				28	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	4.8 "	0.4 '	121.92 mm
Samtec Inc. FFSD-14-D-06.00-01-N-R	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold				28	Socket to Socket Reversed	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	6 "		152.4 mm	0.5 '
Samtec Inc. FFSD-14-D-36.00-01-N	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold		3 ft	914.4 mm	28	Socket to Socket	0.025 in	0.64 mm	Polarizing Key
Samtec Inc. FFSD-14-S-04.00-01-N	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold	4 "	0.333 ft	101.6 mm	28	Socket to Cable	0.025 in	0.64 mm	Polarizing Key
Samtec Inc. FFSD-14-D-05.00-01-N	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold	5 "	0.417 '	127 mm	28	Socket to Socket	0.025 in	0.64 mm	Polarizing Key
Samtec Inc. FFSD-14-01-S-N	2		IDC	10 Áin	0.25 Ám			Gold				28	Receptacle			Feed Through Polarizing Key					1.27 mm	0.05 in	Free Hanging (In-Line)	Ribbon Cable	Female Socket	30 AWG	Black	0.05 in	1.27 mm
Samtec Inc. FFSD-14-D-04.00-01-N-D02	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold	4 "	0.333 ft	101.6 mm	28	Socket to Socket (3)	0.025 in	0.64 mm	Polarizing Key
Samtec Inc. FFSD-14-D-20.00-01-N-R	2	Unshielded	IDC	10 Áin	0.25 Ám	0.05 in	1.27 mm	Gold				28	Socket to Socket Reversed	0.025 in	0.64 mm	Polarizing Key		1.67 ft	508 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.19

Description

General part information

FFSD-14 Series

28 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)

Documents

Technical documentation and resources

FFSD Datasheet

Datasheet
