15SH-B-05-TR-SMT-T/R

Active

Adam Tech

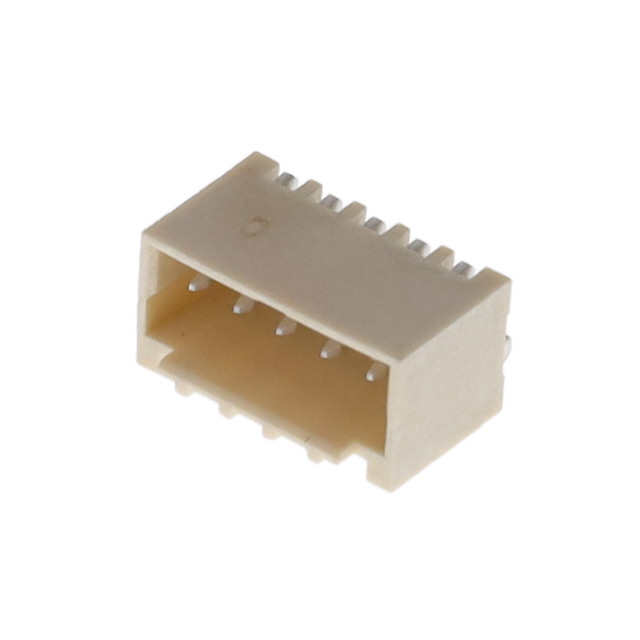

CONN HEADER SMD R/A 5POS 1.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

15SH-B-05-TR-SMT-T/R

Active

Adam Tech

CONN HEADER SMD R/A 5POS 1.5MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.02
		10	$ 0.78
		100	$ 0.60
		500	$ 0.50
	Digi-Reel®	1	$ 1.02
		10	$ 0.78
		100	$ 0.60
		500	$ 0.50
	Tape & Reel (TR)	1000	$ 0.25

Description

General part information

15SH-B Series

Connector Header Surface Mount, Right Angle 5 position 0.059" (1.50mm)

Documents

Technical documentation and resources

Specification	15SH-B-05-TR-SMT-T/R	15SH-B Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	1.5 - 3 A
Fastening Type	Friction Lock	Friction Lock
Insulation Color	Natural	Natural, Ivory
Insulation Height	4.45 mm	4.45 - 5.74 mm
Insulation Height	0.175 in	0.175 - 0.226 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Number of Positions	-	6 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	350 VAC	100 - 350 VAC

Part	Contact Shape	Connector Type	Current Rating (Amps)	Shrouding	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Rows	Mounting Type	Number of Positions	Fastening Type	Contact Material	Voltage Rating	Contact Type	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Termination	Style
Adam Tech 15SH-B-09-TR-SMT-T/R	Square	Header	3 A	Shrouded - 4 Wall	Tin	-25 °C	85 °C	4.45 mm	0.175 in	1	Surface Mount, Right Angle	9	Friction Lock	Brass	350 VAC	Male Pin	UL94 V-0	All	Natural	Solder	Board to Cable/Wire
Adam Tech 15SH-B-07-TR-SMT-T/R	Square	Header	3 A	Shrouded - 4 Wall	Tin	-25 °C	85 °C	4.45 mm	0.175 in	1	Surface Mount, Right Angle	7	Friction Lock	Brass	350 VAC	Male Pin	UL94 V-0	All	Natural	Solder	Board to Cable/Wire
Adam Tech 15SH-B-08-TR-SMT-T/R	Square	Header	3 A	Shrouded - 4 Wall	Tin	-25 °C	85 °C	4.45 mm	0.175 in	1	Surface Mount, Right Angle	8	Friction Lock	Brass	350 VAC	Male Pin	UL94 V-0	All	Natural	Solder	Board to Cable/Wire
Adam Tech 15SH-B-10-TR-SMT-T/R	Square	Header	3 A	Shrouded - 4 Wall	Tin	-25 °C	85 °C	4.45 mm	0.175 in	1	Surface Mount, Right Angle	10	Friction Lock	Brass	350 VAC	Male Pin	UL94 V-0	All	Natural	Solder	Board to Cable/Wire
Adam Tech 15SH-B-07-TS-SMT-T/R	Square	Header	1.5 A	Shrouded - 4 Wall	Tin	-25 °C	85 °C	5.74 mm	0.226 in	1	Surface Mount	7	Friction Lock	Brass	100 VAC	Male Pin	UL94 V-0	All	Ivory	Solder	Board to Cable/Wire
Adam Tech 15SH-B-05-TR-SMT-T/R	Square	Header	3 A	Shrouded - 4 Wall	Tin	-25 °C	85 °C	4.45 mm	0.175 in	1	Surface Mount, Right Angle		Friction Lock	Brass	350 VAC	Male Pin	UL94 V-0	All	Natural	Solder	Board to Cable/Wire
Adam Tech 15SH-B-06-TR-SMT-T/R	Square	Header	3 A	Shrouded - 4 Wall	Tin	-25 °C	85 °C	4.45 mm	0.175 in	1	Surface Mount, Right Angle	6	Friction Lock	Brass	350 VAC	Male Pin	UL94 V-0	All	Natural	Solder	Board to Cable/Wire
Adam Tech 15SH-B-03-TR-SMT-T/R	Square	Header	3 A	Shrouded - 4 Wall	Tin	-25 °C	85 °C	4.45 mm	0.175 in	1	Surface Mount, Right Angle		Friction Lock	Brass	350 VAC	Male Pin	UL94 V-0	All	Natural	Solder	Board to Cable/Wire
