2905214

Active

Phoenix Contact

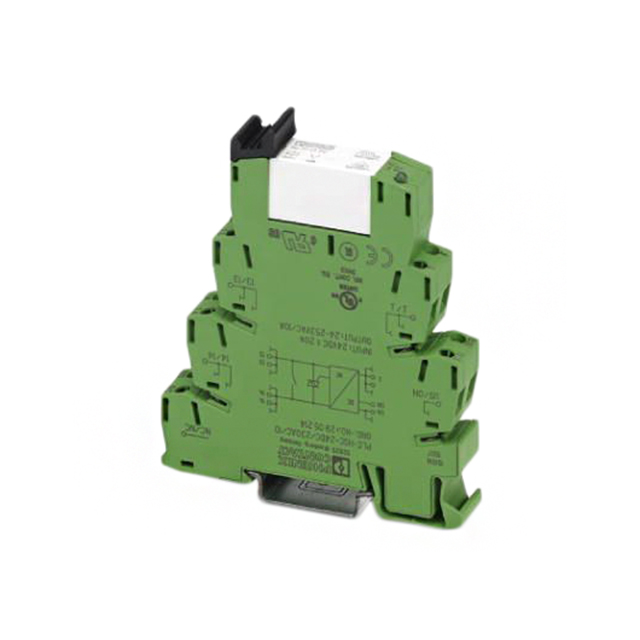

SSR RELAY SPST-NO 10A 24-253V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 10A 24-253V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2905214	290521 Series

Approval Agency	EN, IEC	EN, IEC
Circuit	Hybrid, SPST-NO (1 Form A)	Hybrid, SPST-NO (1 Form A)
Load Current	10 A	10 A
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	AC	AC
Package / Case	Module	Module
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal
Voltage - Input	24 V	24 V
Voltage - Load [Max]	253 V	253 V
Voltage - Load [Min]	24 V	24 V

SSR RELAY SPST-NO 10A 24-253V

Part	Output Type	Load Current	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Approval Agency	Termination Style	Voltage - Input	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]
Phoenix Contact 2905214	AC	10 A	Hybrid, SPST-NO (1 Form A)	-25 °C	60 °C	Module	EN, IEC	Screw Terminal	24 V	DIN Rail	24 V	253 V
Phoenix Contact 2905215	AC	10 A	Hybrid, SPST-NO (1 Form A)	-25 °C	60 °C	Module	EN, IEC	Spring Terminal	24 V	DIN Rail	24 V	253 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A), Hybrid Module
