5151094F
ActiveDIALIGHT

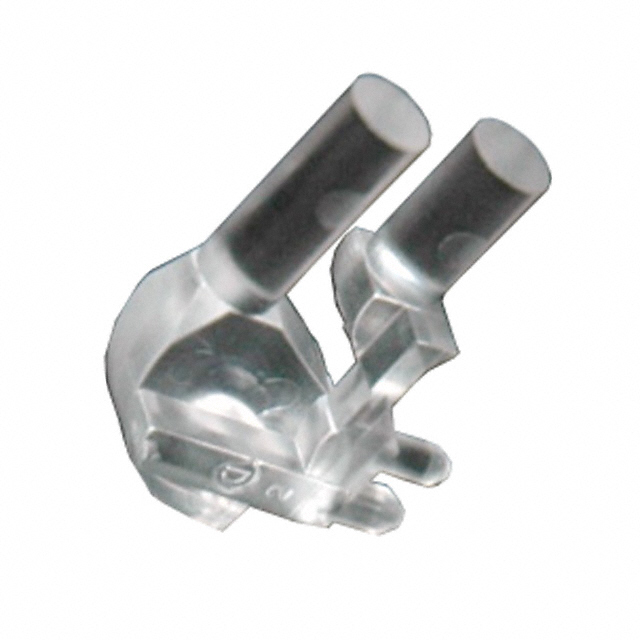

LIGHT PIPE 3MM BI-LEVEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5151094F
ActiveDIALIGHT
LIGHT PIPE 3MM BI-LEVEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5151094F | 5151094 Series |
|---|---|---|
| - | - | |
| Color | Clear | Clear, Diffused |
| Configuration | 2 High | 2 High |
| Lens Size | 3 mm | 3 mm |
| Mounting Type | Press Fit, Board Mount | Press Fit, Board Mount, Right Angle |
| Type | Rigid | Rigid |
5151094 Series
LP 3MM BI LEV TOP ELEM ONLY
| Part | Type | Color | Configuration | Lens Size | Mounting Type |
|---|---|---|---|---|---|
DIALIGHT 5151094802F | |||||
DIALIGHT 5151094F | Rigid | Clear | 2 High | 3 mm | Board Mount, Press Fit |
DIALIGHT 5151094803F | |||||
DIALIGHT 5151094801F | Rigid | Clear, Diffused | 2 High | 3 mm | Board Mount, Press Fit, Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.22 | |
| 10 | $ 0.77 | |||
| 200 | $ 0.57 | |||
| 600 | $ 0.53 | |||
| 1000 | $ 0.43 | |||
| 2000 | $ 0.41 | |||
| 5000 | $ 0.40 | |||
| 10000 | $ 0.39 | |||
| 25000 | $ 0.39 | |||
Description
General part information
5151094 Series
Light Pipe 2 High Clear Rigid Board Mount, Press Fit
