SP1111/S4II-C(CU)
ActiveWeipu Connector
CONN RCPT FEMALE 4P SOLDER UL
SP1111/S4II-C(CU)
ActiveWeipu Connector
CONN RCPT FEMALE 4P SOLDER UL
Description
General part information
SP1111/S4II-C(CU)

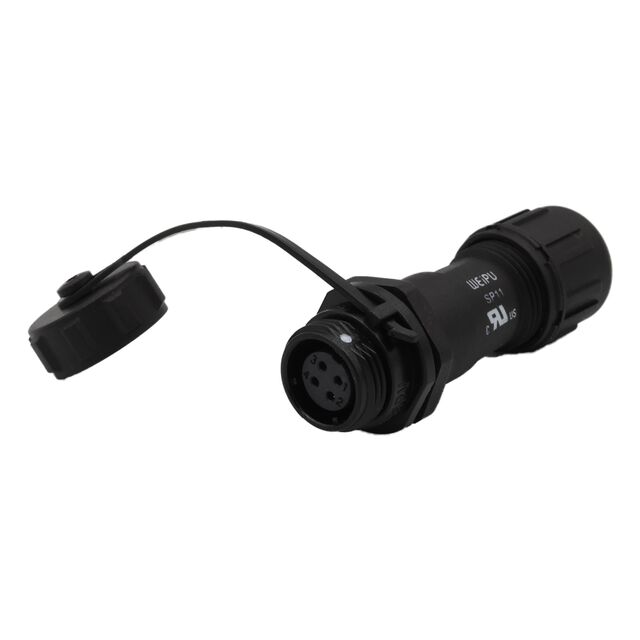

4 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SP1111/S4II-C(CU) |
|---|---|
| Cable Opening (Max) | 0.256 in |
| Cable Opening (Min) | 0.157 in |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating | 3 A |
| Fastening Type | Threaded |
| Features | IP68 Protective Cap (Cover) |
| Ingress Protection | IP68 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Plastic |
| Shell Material | Nylon 6/6, Polycarbonate (PC) |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 125 V |
