Description
General part information

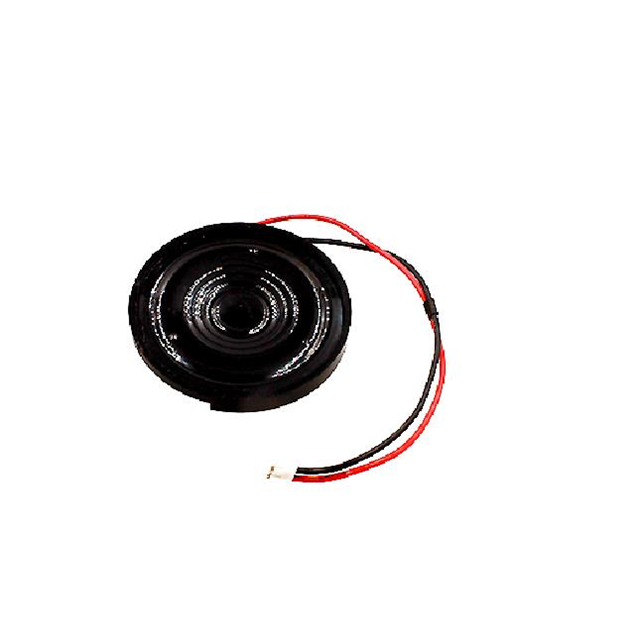

SOC50C07Y50
50 Ohms Telecom Speaker 500 mW 300 Hz ~ 3.5 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | SOC50C07Y50 |
|---|---|
| Efficiency - dBA | 85 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 300 Hz |
| Frequency Range (Max) | 3.5 kHz |
| Frequency Range (Min) | 300 Hz |
| Height - Seated (Max) | 0.311 in |
| Impedance | 50 Ohm |
| Material - Cone | Plastic |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 800 mW |
| Power - Rated | 500 mW |
| Shape | Round |
| Size / Dimension Diameter | 1.969 in |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | Telecom |
