1564324-3

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE CONTACT, SOCKET, CRIMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE CONTACT, SOCKET, CRIMP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Type	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Note	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Number of Positions	Fastening Type	Color	Row Spacing [x]	Row Spacing	Connector Type	Number of Rows	Row Spacing	Features
TE Connectivity Raychem Cable Protection 1418408-1	Stamped	Tab	17 AWG	20 AWG	Crimp	Tin
TE Connectivity Raychem Cable Protection 1241374-3
TE Connectivity Raychem Cable Protection 1241374-1		Socket	17 AWG	20 AWG	Crimp	Tin
TE Connectivity Raychem Cable Protection 1241380-2		Socket	17.5 AWG	20 AWG	Crimp	Gold	31.5 µin	0.8 µm
TE Connectivity Raychem Cable Protection 1564324-1	Stamped	Socket	22 AWG	24 AWG	Crimp	Tin
TE Connectivity Raychem Cable Protection 284875-6					Crimp				-25 °C	105 ░C	Free Hanging (In-Line)	Contacts Not Included	Female Socket	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6 Glass Filled	20	Latch Lock	Black	0.217 in	5.51 mm	Receptacle	2
TE Connectivity Raychem Cable Protection 1564324-3	Stamped	Tab	22 AWG	24 AWG	Crimp	Silver	118.1 µin	3 µm
TE Connectivity Raychem Cable Protection 1897725-2					Crimp						Free Hanging (In-Line)		Tab	4 mm	0.157 in	Polybutylene Terephthalate (PBT) Glass Filled	10	Locking Ramp	Black		4 mm	Plug	2	0.157 in	Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

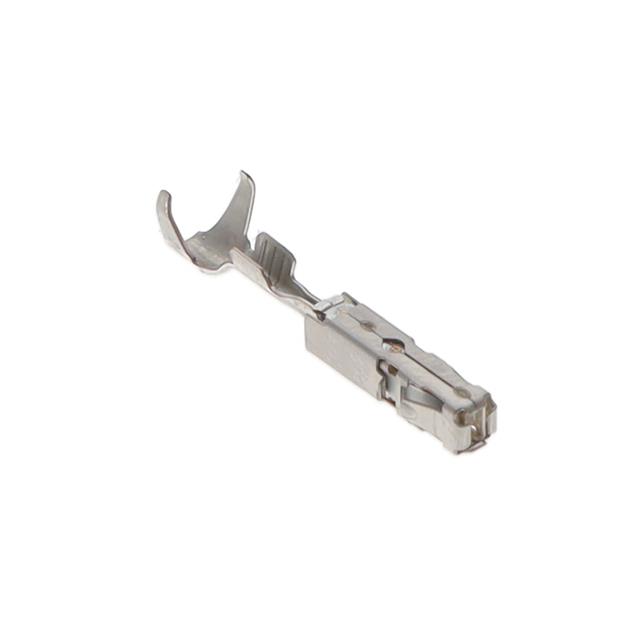

Receptacle Terminal, .22 – .35 mm² Wire, 1.6 mm [.063 in] Tab Width, Silver (Ag), Sealable, .6 mm [.024 in] Tab Thickness, AMP MCP 1.5K
