371
ActiveMaxell Batteries

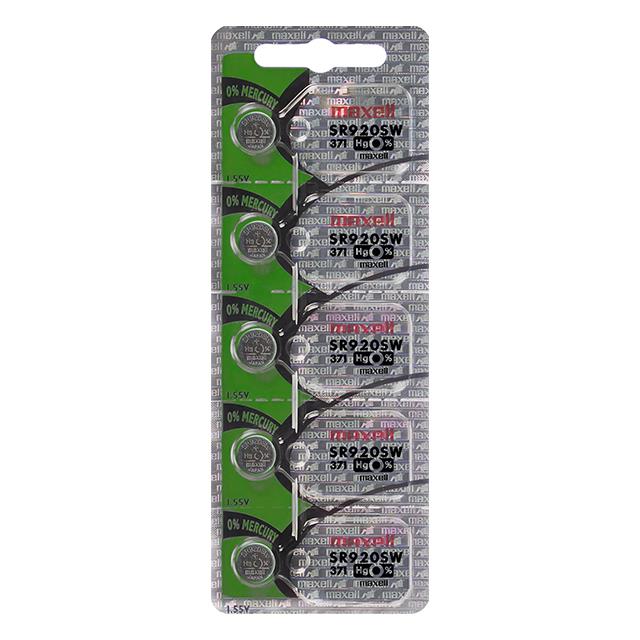

BATT SILVER OX 1.55V COIN 9.5MM
371
ActiveMaxell Batteries
BATT SILVER OX 1.55V COIN 9.5MM
Description
General part information
371
Coin, 9.5mm Silver Oxide 1.55 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | 371 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 9.5 mm |
| Battery Chemistry | Silver Oxide |
| Capacity (Charge) | 35 mAh |
| Discharge Rate (Current) | 50 µA |
| Size / Dimension Diameter | 0.37 in |
| Size / Dimension Height | 0.08 in |
| Termination Style | Requires Holder |
| Voltage - Rated | 1.55 V |
