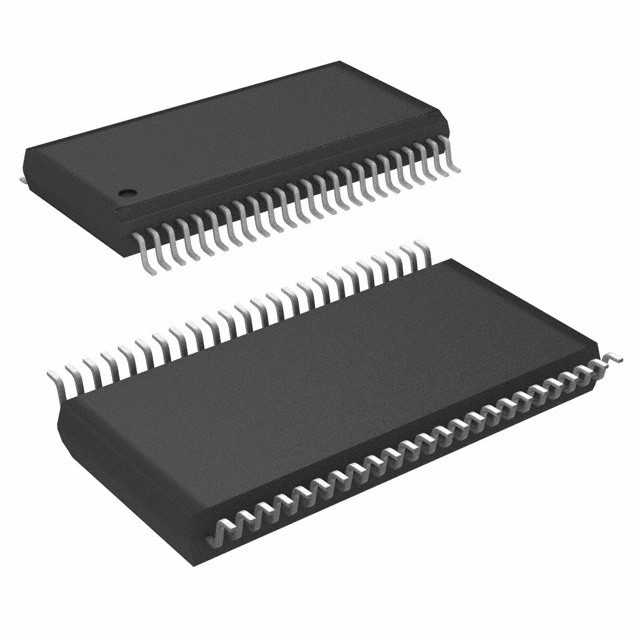

74LVC162245APFG

Active

Renesas Electronics Corporation

3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS AND 5.0V TOLERANT I/O

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IDT Suffixes +1

74LVC162245APFG

Active

Renesas Electronics Corporation

3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS AND 5.0V TOLERANT I/O

Deep-Dive with AI

DocumentsDatasheet IDT Suffixes +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	74LVC162245APFG	74LVC162245A Series

Current - Output High, Low	12 mA	12 mA
Current - Output High, Low	24 mA	24 mA
Mounting Type	Surface Mount	Surface Mount
Number of Bits per Element	8	8
Number of Elements	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	3-State	3-State
Package / Case	0.173 in, 4.4 mm	0.173 - 4.4 in
Package / Case	48-TFSOP	48-TFSOP
Package / Case	-	6.1 mm
Supplier Device Package	-	48-TSSOP
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.7 V	2.7 V

74LVC162245A Series

3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs and 5.0V Tolerant I/O

Part	Output Type	Number of Elements	Number of Bits per Element	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Current - Output High, Low	Current - Output High, Low	Supplier Device Package	Package / Case [custom]
Renesas Electronics Corporation 74LVC162245APFG8	3-State	2	8	Surface Mount	85 °C	-40 °C	2.7 V	3.6 V	0.173 in, 4.4 mm	48-TFSOP	12 mA	24 mA
Renesas Electronics Corporation 74LVC162245APAG8	3-State	2	8	Surface Mount	85 °C	-40 °C	2.7 V	3.6 V	0.24 in	48-TFSOP	12 mA	24 mA	48-TSSOP	6.1 mm
Renesas Electronics Corporation 74LVC162245APFG	3-State	2	8	Surface Mount	85 °C	-40 °C	2.7 V	3.6 V	0.173 in, 4.4 mm	48-TFSOP	12 mA	24 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

74LVC162245A Series

The LVC162245A is designed for asynchronous communication between data buses and can be used as two 8-bit transceivers or one 16-bit transceiver. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. All pins of the 74LVC162245A can be driven from either 3.3V or 5V devices which allows the use of this device as a translator in a mixed 3.3V/5V supply system. The 74LVC162245A operates at -40 °C to +85 °C.
