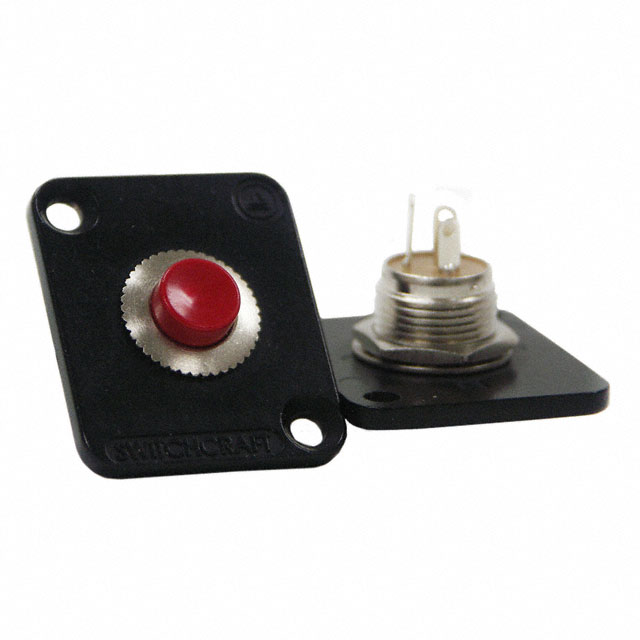

EHPBSMRB

Active

Switchcraft Inc.

EH MOM PSHBTN SWTCH

Search across all available documentation for this part.

Active

Switchcraft Inc.

EH MOM PSHBTN SWTCH

Technical Specifications

Parameters and characteristics commom to parts in this series

EH MOM PSHBTN SW/SPD

Part	Type	Actuator Marking	Color - Actuator/Cap	Circuit	Mounting Type	Actuator Type	Termination Style	Switch Function
Switchcraft Inc. EHPBSMRPKG	Standard	No Marking	Red	SPDT	Panel Mount, Front	Button, Round	Solder Lug	On-Mom
Switchcraft Inc. EHPBSMB	Standard	No Marking	Black	SPDT	Panel Mount, Front	Button, Round	Solder Lug	On-Mom
Switchcraft Inc. EHPBSMBB	Standard	No Marking	Black	SPDT	Panel Mount, Front	Button, Round	Solder Lug	On-Mom
Switchcraft Inc. EHPBSMBPKG	Standard	No Marking	Black	SPDT	Panel Mount, Front	Button, Round	Solder Lug	On-Mom
Switchcraft Inc. EHPBSMRB	Standard	No Marking	Red	SPDT	Panel Mount, Front	Button, Round	Solder Lug	On-Mom
Switchcraft Inc. EHPBSMR	Standard	No Marking	Red	SPDT	Panel Mount, Front	Button, Round	Solder Lug	On-Mom
Switchcraft Inc. EHPBSMRBPKG	Standard	No Marking	Red	SPDT	Panel Mount, Front	Button, Round	Solder Lug	On-Mom
Switchcraft Inc. EHPBSMBBPKG	Standard	No Marking	Black	SPDT	Panel Mount, Front	Button, Round	Solder Lug	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 7.71

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
