103948-4
ActiveTE Connectivity AMP Connectors

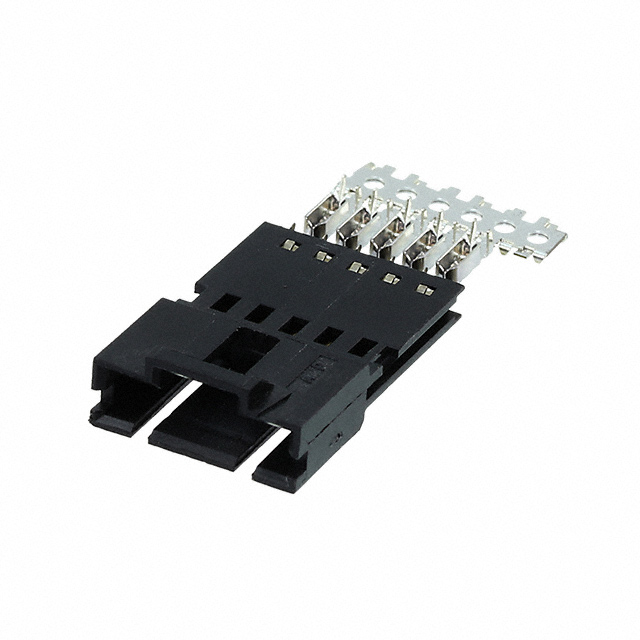

CONN PLUG 5POS IDC 26-30AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103948-4
ActiveTE Connectivity AMP Connectors
CONN PLUG 5POS IDC 26-30AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103948-4 | 103948 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Type | Male Pin | Male Pin |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 4 - 9 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 432 | $ 3.73 | |
103948 Series
CONN PLUG 7POS IDC 26-30AWG GOLD
| Part | Connector Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Features | Cable Termination | Color | Wire Type | Pitch [x] | Pitch [x] | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Contact Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103948-6 | Plug | 7 | 15 µin | 0.38 µm | Closed End | IDC | Black | Ribbon Cable | 2.54 mm | 0.1 in | Gold | 26 AWG | 30 AWG | 1 | Male Pin | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 5-103948-2 | Plug | 15 µin | 0.38 µm | Closed End | IDC | Black | Ribbon Cable | 2.54 mm | 0.1 in | Gold | 26 AWG | 30 AWG | 1 | Male Pin | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 103948-8 | Plug | 9 | 15 µin | 0.38 µm | Closed End | IDC | Black | Ribbon Cable | 2.54 mm | 0.1 in | Gold | 26 AWG | 30 AWG | 1 | Male Pin | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 103948-4 | Plug | 15 µin | 0.38 µm | Closed End | IDC | Black | Ribbon Cable | 2.54 mm | 0.1 in | Gold | 26 AWG | 30 AWG | 1 | Male Pin | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 103948-7 | Plug | 8 | 15 µin | 0.38 µm | Closed End | IDC | Black | Ribbon Cable | 2.54 mm | 0.1 in | Gold | 26 AWG | 30 AWG | 1 | Male Pin | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 103948-3 | Plug | 4 | 15 µin | 0.38 µm | Closed End | IDC | Black | Ribbon Cable | 2.54 mm | 0.1 in | Gold | 26 AWG | 30 AWG | 1 | Male Pin | Free Hanging (In-Line) |
Description
General part information
103948 Series
5 Position Rectangular Plug Connector IDC Gold 26-30 AWG
Documents
Technical documentation and resources
