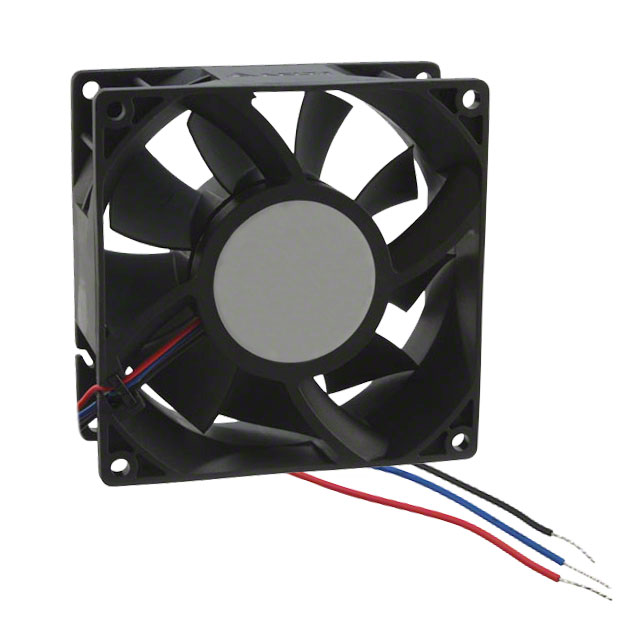

AFB0912EHE-AF00 - AFB0912EHE-AF00

AFB0912EHE-AF00

Obsolete
Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetFans, Blowers CSA Cert+2
AFB0912EHE-AF00 - AFB0912EHE-AF00

AFB0912EHE-AF00

Obsolete
Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheetFans, Blowers CSA Cert+2

Technical Specifications

Parameters and characteristics for this part

SpecificationAFB0912EHE-AF00
Air Flow3.56 m³/min
Air Flow127.3 CFM
Approval AgencyUL, CE, VDE, CSA
Bearing TypeBall
Current Rating (Amps)1.4 A
Fan TypeTubeaxial
FeaturesSpeed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.70000 Hrs
Material - BladePlastic
Material - FramePlastic
Noise56 dB
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-10 °C
Operating Temperature [Min]-10 °C
Power (Watts)16.8 W
RPM4800 RPM
Static Pressure0.635 in H2O
Static Pressure158.2 Pa
Termination3 Wire Leads
Voltage - Rated12 VDC
Voltage Range [Max]13.8 VDC
Voltage Range [Min]7 V
Weight0.551 lb
Weight249.93 g
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

AFB0912EHE-AF00

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 127.3 CFM (3.56m³/min) 3 Wire Leads
