Connectors, Interconnects
917249-1
ActiveTE Connectivity Raychem Cable Protection

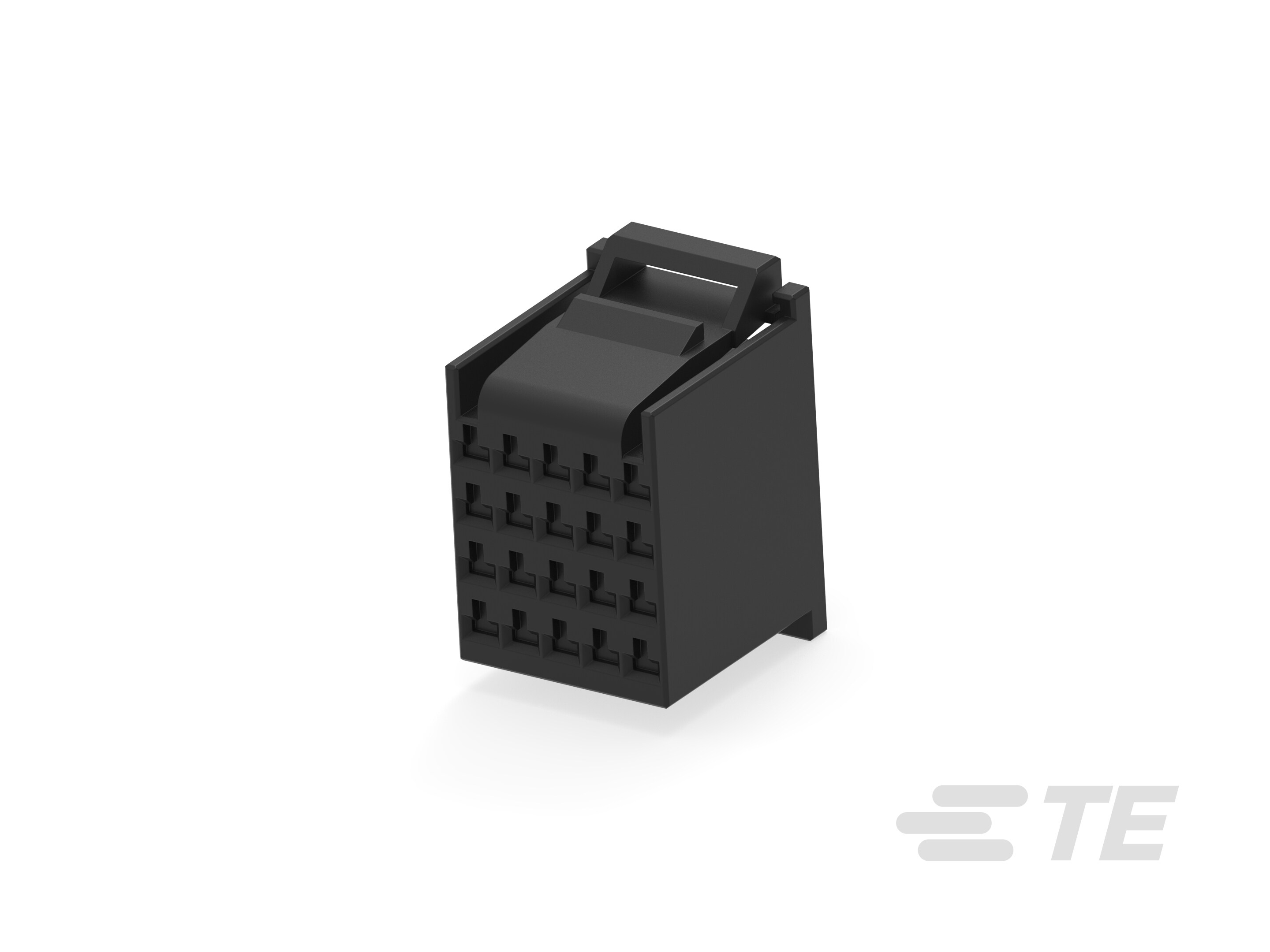

CONN RCPT HSG 20POS 3.81MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
917249-1
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 20POS 3.81MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 917249-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Thermoplastic, Glass Filled, Polyester |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Row Spacing | 5.08 mm |
| Row Spacing | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.12 | |
| 10 | $ 2.59 | |||
| 25 | $ 2.40 | |||
| 50 | $ 2.27 | |||
| 100 | $ 2.15 | |||
| 250 | $ 1.99 | |||
| 500 | $ 1.88 | |||
| 1000 | $ 1.78 | |||
| 2500 | $ 1.65 | |||
Description
General part information
917249 Series
20 Rectangular Connectors - Housings Receptacle Black 0.150" (3.81mm)
