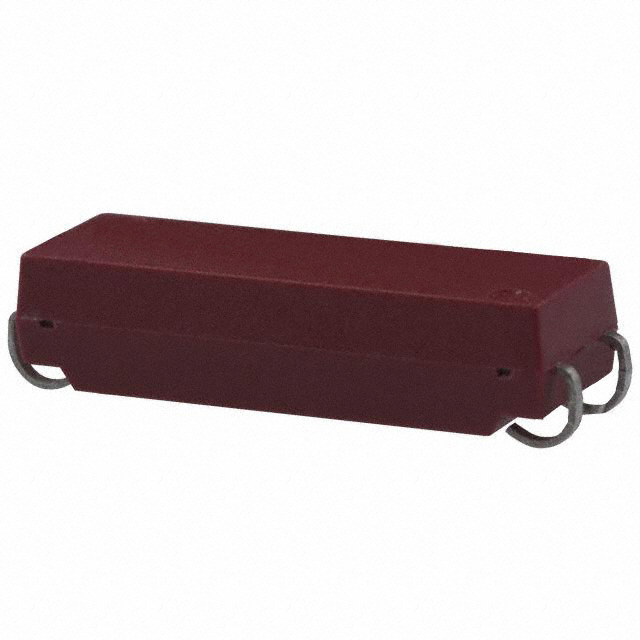

9201-05-20TR

Active

Coto Technology

RELAY REED SPST 500MA 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9201-05-20TR

Active

Coto Technology

RELAY REED SPST 500MA 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.23
		10	$ 9.59
		25	$ 8.52
		50	$ 8.10
		100	$ 7.67
		250	$ 6.82
		500	$ 6.39
	Digi-Reel®	1	$ 10.23
		10	$ 9.59
		25	$ 8.52
		50	$ 8.10
		100	$ 7.67
		250	$ 6.82
		500	$ 6.39
	Tape & Reel (TR)	1000	$ 6.52

Description

General part information

9201 Series

RELAY REED SPST 500MA 5V

Documents

Technical documentation and resources

Datasheet

Specification	9201-05-20TR	9201 Series

Coil Current	20 mA	18.5 - 20 mA
Coil Resistance	250 Ohms	250 - 650 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	5 VDC	5 - 12 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Rating (Current)	0.5 A	0.5 A
Mounting Type	Surface Mount	Through Hole, Surface Mount
Must Operate Voltage	3.75 VDC	3.75 - 9 VDC
Must Release Voltage	0.4 VDC	0.4 - 1 VDC
Operate Time	0.4 ms	0.4 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.1 ms	0.1 ms
Seal Rating	Sealed - Hermetically	Sealed - Hermetically
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	J Lead	PC Pin, J Lead, Gull Wing, Axial

Part	Coil Type	Release Time	Must Operate Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Mounting Type	Coil Resistance	Coil Current	Switching Voltage	Seal Rating	Coil Voltage	Must Release Voltage	Contact Rating (Current)	Contact Form
Coto Technology 9201-12-30	Non Latching	0.1 ms	9 VDC	PC Pin	85 °C	-20 C	0.4 ms	Through Hole	650 Ohms	18.5 mA	200 VDC, 200 VAC	Sealed - Hermetically	12 VDC	1 VDC	0.5 A	SPST-NO (1 Form A)
Coto Technology 9201-12-20TR	Non Latching	0.1 ms	9 VDC	J Lead	85 °C	-20 C	0.4 ms	Surface Mount	650 Ohms	18.5 mA	200 VDC, 200 VAC	Sealed - Hermetically	12 VDC	1 VDC	0.5 A	SPST-NO (1 Form A)
Coto Technology 9201-12-20	Non Latching	0.1 ms	9 VDC	J Lead	85 °C	-20 C	0.4 ms	Surface Mount	650 Ohms	18.5 mA	200 VDC, 200 VAC	Sealed - Hermetically	12 VDC	1 VDC	0.5 A	SPST-NO (1 Form A)
Coto Technology 9201-12-00	Non Latching	0.1 ms	9 VDC	Gull Wing	85 °C	-20 C	0.4 ms	Surface Mount	650 Ohms	18.5 mA	200 VDC, 200 VAC	Sealed - Hermetically	12 VDC	1 VDC	0.5 A	SPST-NO (1 Form A)
Coto Technology 9201-05-00	Non Latching	0.1 ms	3.75 VDC	Gull Wing	85 °C	-20 C	0.4 ms	Surface Mount	250 Ohms	20 mA	200 VDC, 200 VAC	Sealed - Hermetically	5 VDC	0.4 VDC	0.5 A	SPST-NO (1 Form A)
Coto Technology 9201-12-10	Non Latching	0.1 ms	9 VDC	Axial	85 °C	-20 C	0.4 ms	Surface Mount	650 Ohms	18.5 mA	200 VDC, 200 VAC	Sealed - Hermetically	12 VDC	1 VDC	0.5 A	SPST-NO (1 Form A)
Coto Technology 9201-05-20	Non Latching	0.1 ms	3.75 VDC	J Lead	85 °C	-20 C	0.4 ms	Surface Mount	250 Ohms	20 mA	200 VDC, 200 VAC	Sealed - Hermetically	5 VDC	0.4 VDC	0.5 A	SPST-NO (1 Form A)
