794226-1
ActiveTE Connectivity AMP Connectors

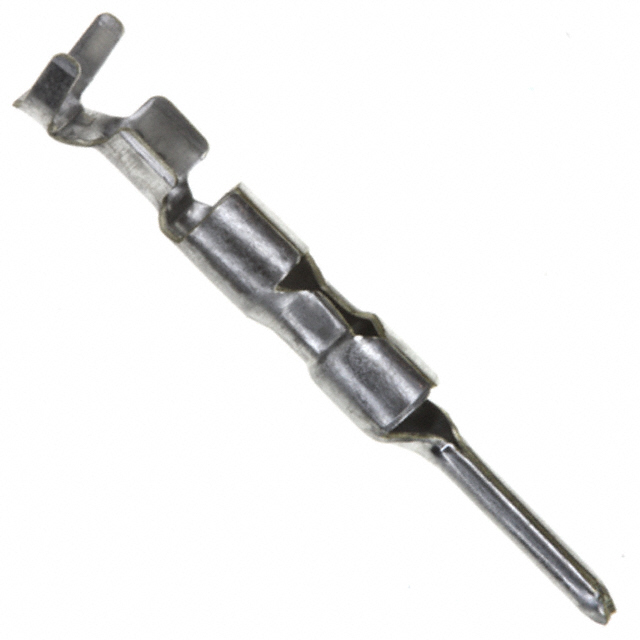

CONN PIN 22-26AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794226-1
ActiveTE Connectivity AMP Connectors
CONN PIN 22-26AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794226-1 | 794226 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | 0.76 Ám |
| Contact Finish Thickness | - | 30 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
794226 Series
CONN PIN 22-26AWG CRIMP TIN
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.25 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.19 | |||
| 1000 | $ 0.14 | |||
| 5000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
Description
General part information
794226 Series
Pin Contact Tin 22-26 AWG Crimp
Documents
Technical documentation and resources
