1241.1112.7018

Active

SCHURTER Inc.

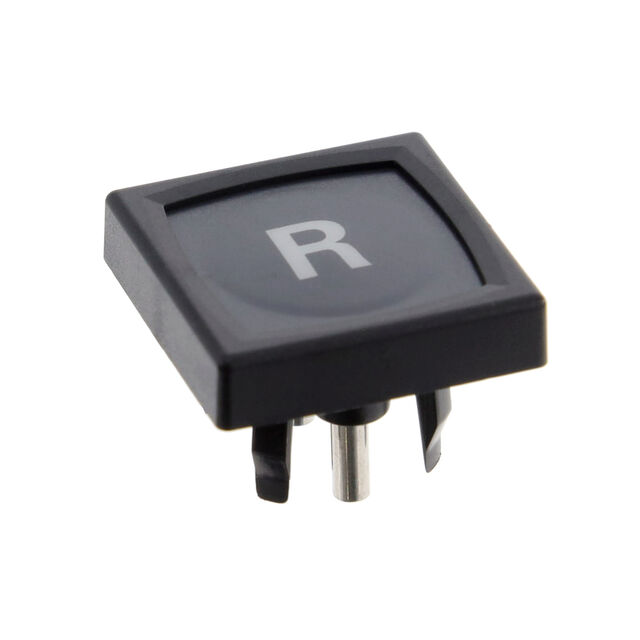

SWITCH PUSH SPST-NO 125MA 48V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1241.1112.7018	1241.1112 Series

Actuator Marking	No Marking	No Marking
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	-	Green, Black
Current Rating (Amps)	125 mA	125 mA
Electrical Life	1000000 Cycles	1000000 Cycles
Features	Tactile Feedback	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	13 mm	13 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Standard
Voltage Rating - DC	48 V	48 V

SWITCH PUSH SPST-NO 125MA 48V

Part	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Marking	Mechanical Life	Circuit	Ingress Protection	Features	Mounting Type	Voltage Rating - DC	Type
SCHURTER Inc. 1241.1112.7095	13 mm	Green	125 mA	Solder Lug	Off-Mom	-25 °C	60 °C	1000000 Cycles	No Marking	1000000 Cycles	SPST-NO	IP65 - Dust Tight, Water Resistant	Tactile Feedback	Panel Mount, Snap-In	48 V	Standard
SCHURTER Inc. 1241.1112.7097	13 mm	Black	125 mA	Solder Lug	Off-Mom	-25 °C	60 °C	1000000 Cycles	No Marking	1000000 Cycles	SPST-NO	IP65 - Dust Tight, Water Resistant	Tactile Feedback	Panel Mount, Snap-In	48 V	Standard
SCHURTER Inc. 1241.1112.7018	13 mm		125 mA	Solder Lug	Off-Mom	-25 °C	60 °C	1000000 Cycles	No Marking	1000000 Cycles	SPST-NO	IP65 - Dust Tight, Water Resistant	Tactile Feedback	Panel Mount, Snap-In	48 V	Standard
