CC-WMX8MM-KIT

Active

Digi International

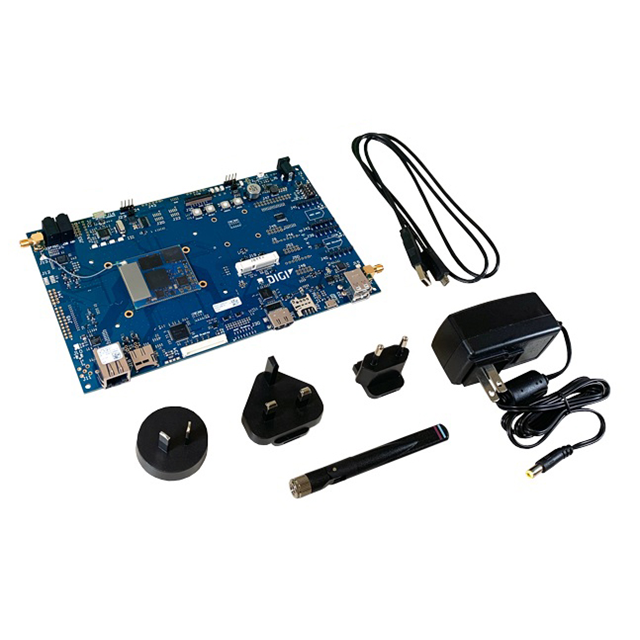

DIGI CONNECTCORE 8M MINI DEVELOPMENT KIT

Find alt

Alpha

CC-WMX8MM-KIT

Active

Digi International

DIGI CONNECTCORE 8M MINI DEVELOPMENT KIT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

CC-WMX Series

i.MX 8M Mini ConnectCore® 8M Transceiver; 802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE) 2.4GHz, 5GHz Evaluation Board

Technical Specifications

Parameters and characteristics for this part

Specification	CC-WMX8MM-KIT

Contents	Board, Accessories
For Use With/Related Products	i.MX 8M Mini
Frequency	2.4 GHz, 5 GHz
Frequency	2.4GHz, 5GHz
Supplied Contents	Board(s), Accessories
Type	Bluetooth® Smart Ready 4.x Dual Mode (BLE), WLAN), Transceiver, WiFi, 802.11 a/b/g/n/ac (Wi-Fi
Utilized IC / Part	i.MX 8M Mini

CC-WMX Series

Part	Power - Output	Mounting Type	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Frequency Range 1 (Max)	Frequency Range 2 (Max)	Frequency Range 2 (Min)	Frequency Range 1 (Min)	Protocol	RF Family/Standard	Memory Type	Memory Size (DRAM)	Memory Size (Flash)	Serial Interfaces	Data Rate	Voltage - Supply	Current - Receiving	Antenna Type	Memory Size ({type})	Memory Size (RAM)	Frequency	Frequency	Modulation	Current - Transmitting	Sensitivity	Memory Size (SRAM)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Size / Dimension Width	Size / Dimension Length	Module/Board Type	Core Processor	Connector Type	Connector Pin Count	Supplied Contents	Contents	Memory Size	Memory Size	Utilized IC / Part
Digi International CC-WMX-L96C-TE10	17 dBm	Surface Mount	100-SMD Module	-40 °C	85 °C	2.484 GHz	5.85 GHz	4.9 GHz	2.412 GHz	802.11a 802.11b 802.11g 802.11n Bluetooth v4.0	Bluetooth WiFi	DRAM Flash	512 MB	4 GB	PWM UART USB	150 MHz
Digi International CC-WMX-PE47-RM	17 dBm	Card Edge	Module	-40 °C	85 °C					802.11a 802.11b 802.11g 802.11n	WiFi	Flash RAM		128 MB	I2C I2S JTAG PWM SPI UART USB	150 MHz	5 VDC	100 mA	Antenna Not Included U.FL	128 MB	128 MB	2.4 GHz 5 GHz	2.4GHz 5GHz	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	406 mA
Digi International CC-WMX-PF58-VM	17 dBm	Card Edge	Module	-40 °C	85 °C					802.11a 802.11b 802.11g 802.11n Bluetooth v4.0	Bluetooth WiFi	Flash RAM		256 MB	I2C I2S JTAG PWM SPI UART USB	150 MHz	5 VDC	100 mA	Antenna Not Included U.FL			2.4 GHz 5 GHz	2.4GHz 5GHz	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	406 mA
Digi International CC-WMX-LB69-VM-B	19 dBm		Module	-20 °C	70 °C					802.11a 802.11b 802.11g 802.11n	WiFi	Flash RAM SRAM		512 MB	I2C SPI UART USB	65 Mbps			Antenna Not Included U.FL	512 MB	512 MB	2.4 GHz 5 GHz	2.4GHz 5GHz			-94 dBm	512 MB	3.4 V	4.8 V
Digi International CC-WMX-LD79-QTC1																														3.23 in	1.97 in	MPU Core	ARM® Cortex®-A8 i.MX53	Board-to-Board (BTB) Socket	360
Digi International CC-WMX-JN58-NE		Surface Mount	Module	-40 °C	85 °C					802.11a 802.11ac 802.11b 802.11g 802.11n Bluetooth v4.0	Bluetooth WiFi	Flash RAM		256 MB	I2C SPI UART USB		5 VDC					528 MHz
Digi International CC-WMX6N-KIT																																				Board(s)	Board
Digi International CC-WMX-LD79-VK-B	17 dBm	Chassis Mount	Module	-40 °C	85 °C					802.11a 802.11b 802.11g 802.11n	WiFi	Flash RAM		512 MB	Ethernet I2C I2S JTAG SDIO SPI UART USB	65 Mbps	3.75 V	700 mA	Antenna Not Included U.FL		1 GB	2.4 GHz 5 GHz	2.4GHz 5GHz	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	700 mA	-94 dBm												1GB RAM 512MB Flash
Digi International CC-WMX-PE47-VM-B	17 dBm	Card Edge	Module	-40 °C	85 °C	2.484 GHz	5.85 GHz	4.9 GHz	2.412 GHz	802.11a 802.11b 802.11g 802.11n	WiFi	DRAM Flash		128 MB	I2C I2S JTAG PWM SDIO SPI UART USB	150 MHz	5 VDC	100 mA	Antenna Not Included U.FL					16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	406 mA														128 MB
Digi International CC-WMX-KK8D-TN		Surface Mount	Module	-40 °C	85 °C					802.11a 802.11ac 802.11b 802.11g 802.11n Bluetooth v5.0	Bluetooth WiFi	DDR3 Flash		8 GB	Ethernet GPIO I2C I2S PWM SPI UART USB							800 MHz																		MKL14Z32VFT4
