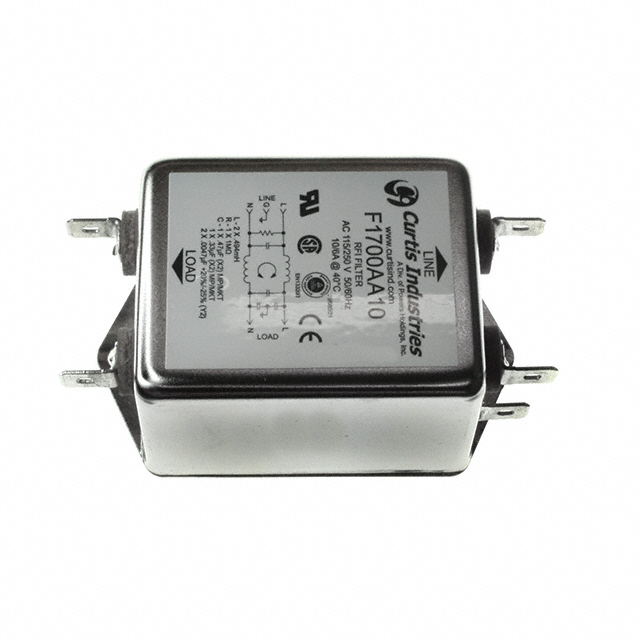

F1700AA10
ActiveCurtis Industries
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F1700AA10
ActiveCurtis Industries
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F1700AA10 | F1700A Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | TUV, CSA, UR, CE | TUV, CSA, UR, CE |
| Configuration | Single Stage | Single Stage |
| Current | 10 A | 3 - 20 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Mounting Type | Chassis Mount | Chassis Mount |
| Termination Style | Quick Connect | Quick Connect |
| Voltage - Rated AC | 250 V | 250 V |
F1700A Series
LINE FILTER 250VAC 10A CHASSIS
| Part | Termination Style | Frequency - Operating [Max] | Frequency - Operating [Min] | Filter Type | Approval Agency | Current | Applications | Configuration | Mounting Type | Voltage - Rated AC |
|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries F1700AA10 | Quick Connect | 60 Hz | 50 Hz | Single Phase | CE, CSA, TUV, UR | 10 A | General Purpose | Single Stage | Chassis Mount | 250 V |
Curtis Industries F1700AA06 | Quick Connect | 60 Hz | 50 Hz | Single Phase | CE, CSA, TUV, UR | 6 A | General Purpose | Single Stage | Chassis Mount | 250 V |
Curtis Industries F1700AA20 | Quick Connect | 60 Hz | 50 Hz | Single Phase | CE, CSA, TUV, UR | 20 A | General Purpose | Single Stage | Chassis Mount | 250 V |
Curtis Industries F1700AA03 | Quick Connect | 60 Hz | 50 Hz | Single Phase | CE, CSA, TUV, UR | 3 A | General Purpose | Single Stage | Chassis Mount | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 28.51 | |
Description
General part information
F1700A Series
Single Phase EMC/EMI Line Filter 10 A 250V 50/60Hz Single Stage Quick Connect
