Description
General part information
SFSA128GQ1BJ8TO-C-NU-226-STD

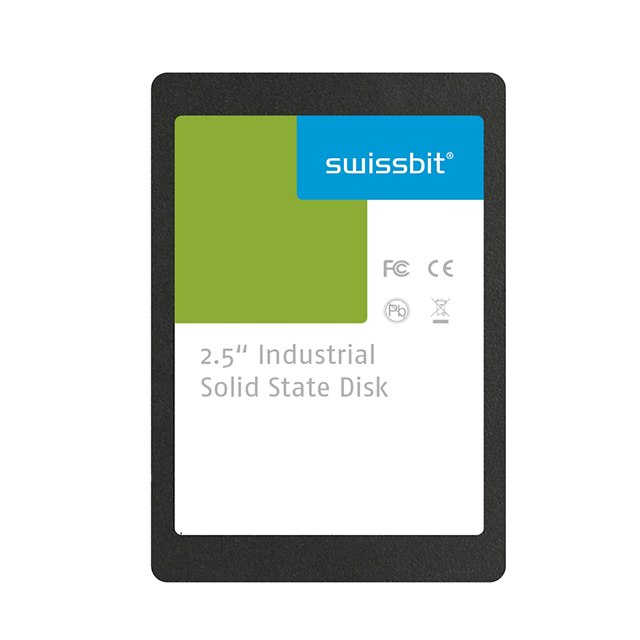

Solid State Drive (SSD) FLASH - NAND (SLC) 128GB SATA II 2.5" 5V
Technical Specifications
Parameters and characteristics for this part
| Specification | SFSA128GQ1BJ8TO-C-NU-226-STD |
|---|---|
| Current - Max | 480 mA |
| Form Factor Size | 2.5 in |
| Memory Size | 128 GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 9.3 mm |
| Size / Dimension Length | 100.2 mm |
| Size / Dimension Width | 69.85 mm |
| Speed - Read | 247 MB/s |
| Speed - Write | 189 MB/s |
| Type | SATA II |
| Voltage - Supply | 5 VDC |
| Weight | 3.17 oz |
