Description
General part information

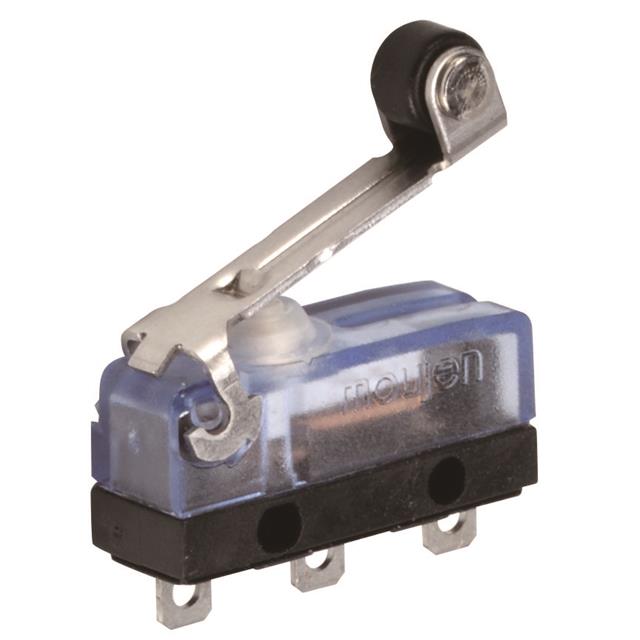

MZ-7812
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MZ-7812 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating | 750 mA, 270 mA |
| Differential Travel (Linear) | 0.028 in |
| Electrical Life (Cycles) | 50000 |
| Ingress Protection Description | Dust Tight |
| Ingress Protection IP Rating | IP60 |
| Mechanical Life (Cycles) | 500000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 73 gf |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.106 in |
| Pretravel (Length) | 0.035 in |
| Quick Connect Size (0.110") | 0.11 in |
| Release Force | 37 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
