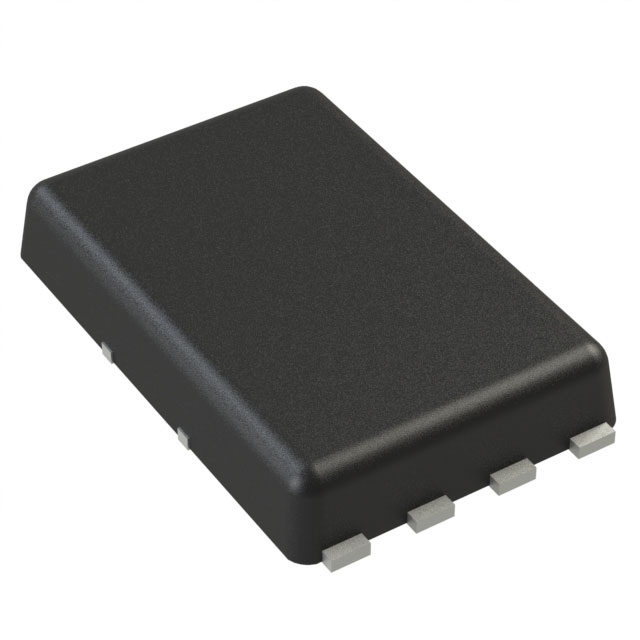

S-93C56CD0H-A8T1U3

Active

ABLIC Inc.

IC EEPROM 2KBIT MICROWIRE HSNT8A

Search across all available documentation for this part.

Active

ABLIC Inc.

IC EEPROM 2KBIT MICROWIRE HSNT8A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S-93C56CD0H-A8T1U3	93C56C Series

Clock Frequency	2 MHz	2 MHz
Grade	Automotive	Automotive
Memory Format	EEPROM	EEPROM
Memory Interface	Microwire	Microwire
Memory Organization	128 x 16	128 x 16
Memory Size	256 B	256 B
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 °C	105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-SMD, Flat Leads Exposed Pad	8-SMD, Flat Leads Exposed Pad, 8-TSSOP
Package / Case	-	0.173 "
Package / Case	-	4.4 mm
Qualification	AEC-Q100	AEC-Q100
Supplier Device Package	HSNT-8-A	HSNT-8-A, 8-TSSOP, 8-TMSOP
Technology	EEPROM	EEPROM
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.6 V	1.6 V
Write Cycle Time - Word, Page	4 ms	4 ms

IC EEPROM 2KBIT MICROWIRE HSNT8A

Part	Mounting Type	Write Cycle Time - Word, Page	Package / Case	Grade	Voltage - Supply [Min]	Voltage - Supply [Max]	Clock Frequency	Technology	Memory Interface	Memory Type	Supplier Device Package	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Memory Format	Memory Organization	Package / Case [custom]	Package / Case [custom]
ABLIC Inc. S-93C56CD0H-A8T1U3	Surface Mount	4 ms	8-SMD, Flat Leads Exposed Pad	Automotive	1.6 V	5.5 V	2 MHz	EEPROM	Microwire	Non-Volatile	HSNT-8-A	256 B	105 °C	-40 °C	AEC-Q100	EEPROM	128 x 16
ABLIC Inc. S-93C56CD0H-T8T2U3	Surface Mount	4 ms	8-TSSOP	Automotive	1.6 V	5.5 V	2 MHz	EEPROM	Microwire	Non-Volatile	8-TSSOP	256 B	105 °C	-40 °C	AEC-Q100	EEPROM	128 x 16	0.173 "	4.4 mm
ABLIC Inc. S-93C56CD0H-K8T2U3	Surface Mount	4 ms		Automotive	1.6 V	5.5 V	2 MHz	EEPROM	Microwire	Non-Volatile	8-TMSOP	256 B	105 °C	-40 °C	AEC-Q100	EEPROM	128 x 16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EEPROM Memory IC 2Kbit Microwire 2 MHz HSNT-8-A
