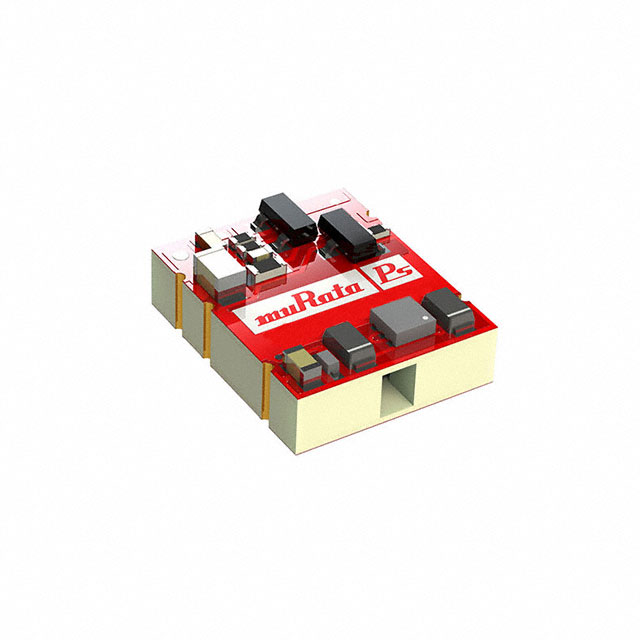

NXE1S0305MC-R13
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
NXE1S0305MC-R13
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NXE1S0305MC-R13 | NXE1S03 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 200 mA | 200 mA |
| Efficiency | 70 % | 70 % |
| Features | SCP | SCP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 5 Leads | 5 Leads |
| Package / Case [Max] | 14-SMD Module | 14-SMD Module |
| Size / Dimension [x] | 0.5 in | 0.5 in |
| Size / Dimension [x] | 12.7 mm | 12.7 mm |
| Size / Dimension [y] | 10.4 mm | 10.4 mm |
| Size / Dimension [y] | 0.41 in | 0.41 in |
| Size / Dimension [z] | 0.18 " | 0.18 " |
| Size / Dimension [z] | 4.5 mm | 4.5 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 3.63 V | 3.63 V |
| Voltage - Input (Min) [Min] | 2.97 V | 2.97 V |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
NXE1S03 Series
ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
| Part | Efficiency | Voltage - Input (Min) [Min] | Applications | Type | Mounting Type | Number of Outputs | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Isolation | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Package / Case | Package / Case [Max] | Features | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NXE1S0305MC-R13 | 70 % | 2.97 V | ITE (Commercial), Medical | Isolated Module | Surface Mount | 1 | 0.5 in | 10.4 mm | 12.7 mm | 0.41 in | 0.18 " | 4.5 mm | 3000 V | 200 mA | 85 °C | -40 °C | 3.63 V | 5 Leads | 14-SMD Module | SCP | 5 V |
Murata Power Solutions Inc. NXE1S0305MC-R13 | |||||||||||||||||||||
Murata Power Solutions Inc. NXE1S0305MC-R7 | |||||||||||||||||||||
Murata Power Solutions Inc. NXE1S0305MC-R7 | 70 % | 2.97 V | ITE (Commercial), Medical | Isolated Module | Surface Mount | 1 | 0.5 in | 10.4 mm | 12.7 mm | 0.41 in | 0.18 " | 4.5 mm | 3000 V | 200 mA | 85 °C | -40 °C | 3.63 V | 5 Leads | 14-SMD Module | SCP | 5 V |
Description
General part information
NXE1S03 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 2.97V - 3.63V Input
