10159583-C231000LF
ActiveAmphenol ICC (FCI)

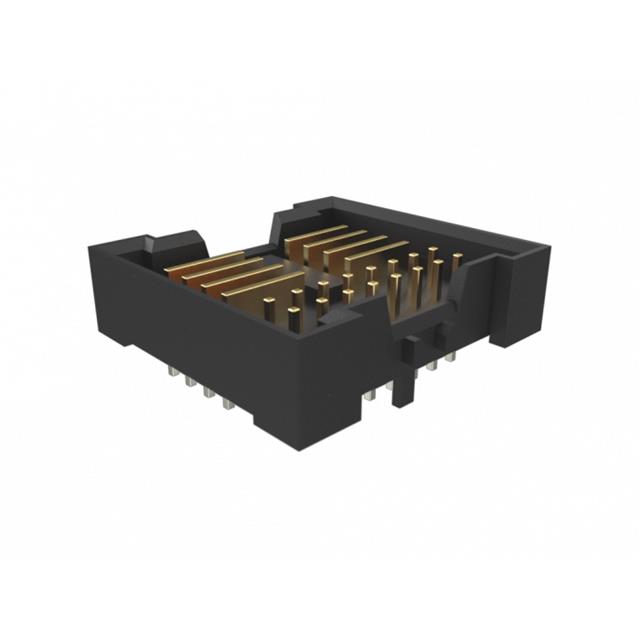

PWRBLADE MINIMEZZ 2.50MM HEADER
10159583-C231000LF
ActiveAmphenol ICC (FCI)
PWRBLADE MINIMEZZ 2.50MM HEADER
Description
General part information
10159583-C231000LF
40 Connector Plug, Male Blades and Female Sockets Through Hole Black Blade Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 10159583-C231000LF |
|---|---|
| Color | Black |
| Connector Style | Blade Power |
| Connector Type | Female Sockets, Plug, Male Blades |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | Board Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
| Power Contacts (Typical) | 16 |
| Signal Contacts (Typical) | 24 |
| Termination | Solder |
| Voltage Rating | 45 VDC |
