9457 0605000

Active

Belden Inc.

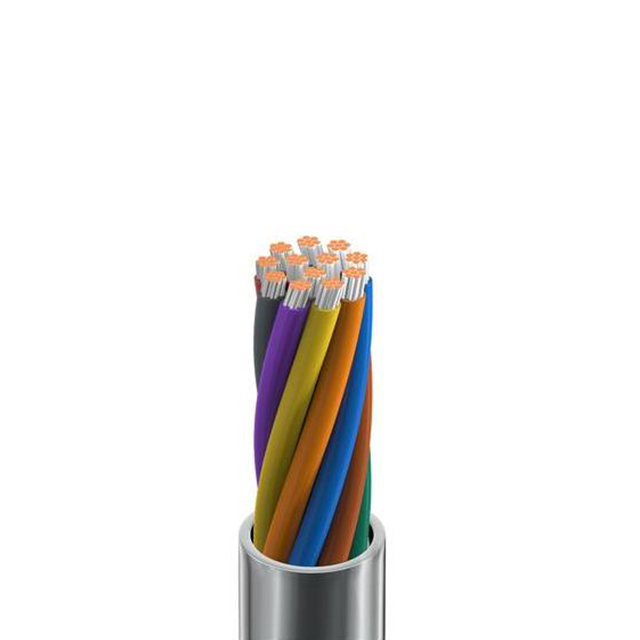

CABLE 12COND 20AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 20AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9457 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	8.59 mm
Jacket (Insulation) Diameter [diameter]	0.338 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket Color	Voltage	Wire Gauge	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Cable Type	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
Belden Inc. 9457 0605000	Chrome	300 V	20 AWG	Copper Tinned	12	Poly-Vinyl Chloride (PVC)	Multi-Conductor	UL Style 2464	0.889 mm	0.035 in	8.59 mm	0.338 in	28	7	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	-20 C	80 C
Belden Inc. 9457 060100	Chrome		20 AWG	Copper Tinned	12	Poly-Vinyl Chloride (PVC)	Multi-Conductor	UL Style 2464	0.889 mm	0.035 in	8.59 mm	0.338 in	28	7	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	-20 C	80 C	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 5.81

General part information

12 Conductor Multi-Conductor Cable Chrome 20 AWG 5000' (1524.0m)
